Arducam B0066 1/4 Inch 5MPs Sensor Spy Camera Module with Flex Cable for Raspberry Pi Model A/B/B+

Arducam B0066 1/4 Inch 5MPs Sensor Spy Camera Module with Flex Cable for Raspberry Pi Model A/B/B+

Artnr.: AC2-200660
Hersteller: Arducam

Arducam 1/4 Inch 5MPs Sensor Spy Camera Module with Flex Cable for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3, 3B+, 4

35,90 €

inkl. 19% MwSt.

(30,17 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

Beschreibung
Kundenrezensionen

In order to meet the increasing need of Raspberry Pi compatible camera modules. The ArduCAM team now released another add-on spy camera module for Raspberry Pi series boards which is fully compatible with official one.

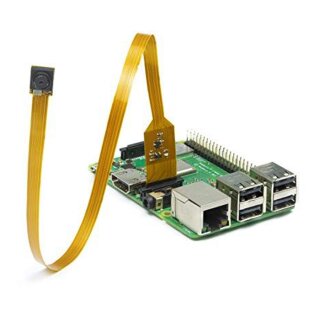

The board itself is tiny, at around 300mm x 16mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.

Application:

Cellular phones
PDAs
Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms
For More information, please visit www.arducam.com

Feature:

High-Definition video camerafor Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
Integral IR filter
Angle of View: 62 x 47 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Still picture resolution: 2592 x 1944
Max video resolution: 1080p
Max frame rate: 30fps
Size: 300 x 16 mm flex cable, neck wide is 6mm

Package including:

1pcs Spy Camera Module 1/4 Inch 5 Mega pixel Module with flex cable for Raspberry Pi

NOTE:Raspberry Pi Type B Development Board is NOT INCLUDED

Additional Resources:
