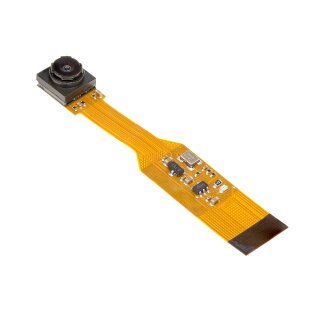

Arducam B006604 Raspberry Pi Zero Camera Module Wide Angle 120°
Artnr.: AC2-200664
Arducam Raspberry Pi Zero Camera Module Wide Angle 120°, 1/4 Inch 5MP OV5647 Spy Camera with Flex Cable for Pi Zero and Pi Compute Module

23,90 € inkl. 19% MwSt.
20,08 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar (knapper Bestand)

Lieferstatus: Wird nicht mehr hergestellt

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

In order to meet the increasing need of Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on spy camera module which is fully compatible with Raspberry Pi Zero and Pi compute module.

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.

This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30. 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi Zero by way of the small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

Features:

Angle of View: 120 degree diagonal

Fixed Focus: 1 m to infinity

Max frame rate: 30fps

Max video resolution: 1080p

Dimension: 60mm × 11.5mm × 5.5mm.


Document:
  • Arducam Documentation – Arducam Cameras for Raspberry Pi
  • 3D drawing.step
