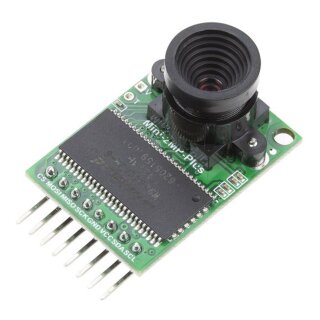

Arducam B0067 Mini Module Camera Shield with OV2640 2MPs Lens for Arduino UNO Mega2560 Board & Raspberry Pi Pico

ArduCAM-M-2MP-Plus is update version of ArduCAM-M-2MP, and is a high definition 2MP SPI camera, which reduce the complexity of the camera control interface. It integrates 2MP CMOS image sensor OV2640, and provides miniature size, as well as the easy to use hardware interface and open source code library. The ArduCAM mini can be used in any platforms like Arduino, Raspberry Pi, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Arduino boards. ArduCAM mini not only offers the capability to add a camera interface which doesn't have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.

Application:

• IoT cameras
• Robot cameras
• Wildlife cameras
• Other battery-powered products
• Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms

Features:

• 2MP image sensor OV2640
• M12 mount or CS mount lens holder with changeable lens options
• Onboard 8MByte frame buffer
• IR sensitive with proper lens combination
• I2C interface for the sensor configuration
• SPI interface for camera commands and data stream
• All IO ports are 5V/3.3V tolerant
• Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
• Well mated with standard Arduino boards
• Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
• Small form of factor
• Format support: JPEG RGB
  Output Format: JPEG RGB

Package Including:

• User Guide – Arducam 2MP SPI Camera
• Application Note – Arducam 2MP SPI Camera
• Arducam Documentation – Arducam 2MP SPI Camera
• Github – Arducam Shield V2 F SPI Camera
• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
• 2MP SPI Camera Hardware Application Note
• Datasheet.pdf
• 3D drawing
• SPI Camera Software Appliction Note

Video:

Arducam Mini 2MP SPI Camera Module for Arduino Tutorial

Using Arducam Mini with RPi Pico or other RP2040 Boards
