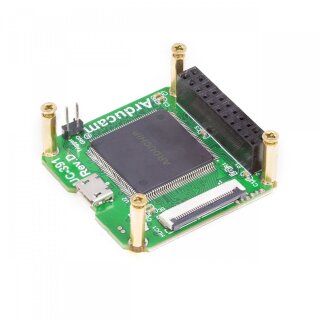

Arducam B0095 USB 2.0 Camera Shield Rev.D

Item Description:

The second generation of Arducam USB2.0 shield is designed to replace the old one released on March 2017 while keeping the same form of factor and software compatible. The highlight of the new USB2.0 camera shield is that it has onboard 8MByte hardware frame buffer, and overcome the bandwidth and dropping frames issue when using the software frame buffer scheme. In addition, with onboard frame buffer it supports synchronized multiple cameras taking images exactly at the same time. Now it well supports both PC and embedded system like Raspberry Pi, and also can provide customized support for Odroid, Beaglebone Black, Nvidia JETSON TK/TX boards.

Features:

• Support any parallel image sensors
• Support 8/10/12 bit pixel color depth
• Build-in IRCUT control  (optional)
• Need extra MIPI to parallel adapter board for supporting MIPI interface sensors
• Support x86, ARM 32/64bit hardware platforms
• Support Windows, Linux OS
• Fully customizable and can be ported to other hardware platform and software OS
• Provide free binary SDK library and demo software source code

Specifications:

• Bandwidth:480Mbps USB2.0
• I/O Voltage Standard: 3.3V
• Connector: Micro-USB2.0
• Onboard Frame Buffer 8MBytes
• Size: 40 x 40 mm
• Weight: 20g
• Power Consumption: 5V/300mA
• Operation Temperature: -10°C ~ +55°C

Package Includes:

• 1pcs Arducam USB2 Camera Shield
• 1pcs USB2.0 micro-USB Cable

Note : Camera module/breakout is not included, should order seperately

Additional Resources:

• User Guide – Arducam USB2 Camera Shield
• Datasheet – Arducam USB2 Camera Shield
• Arducam Documentation – Arducam USB Cameras
• Github – Arducam USB Camera Shield
• Blog – Arducam USB Camera Shield
