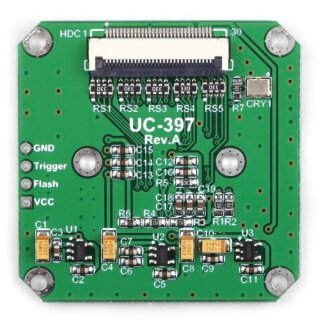

Arducam B0097 14MP MT9F001/002 Camera for USB Shield, M12 S-Mount

Item Description:

The MT9F001/002 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.

1/2.3" 14MP (4608 x 3288) CMOS color rolling shutter with global reset release camera module MT9F001/002.
World-Class 1.4μm Pixel Sensitivity, Produced on Aptina’s world-class 1.4μm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.
Full HD Video Modes and EIS, Full HD support—1080p at 60 fps—for max video performance and 20% extra imaging area for image stabilization.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.

Feature

• 1/2.3" optical format
• RGB Bayer pattern
• 14MP 4608 x 3288 MT9F001/002 sensor
• 1.4 x 1.4 um Pixel size
• 6.3fps at full resolution
• 0.724V/lux-sec responsivity
• 65.3dB dynamic range
• single 3.3V power input
• Parallel camera interface
• Default M12 mount 4.2mm LS-18023 lens

Application

• Digital video cameras
• Digital still cameras
• Industrial camera
• Medical camera
• Microscopy camera
• UAV camera

Package Including

1pcs Arducam CMOS MT9F001 1/2.3-Inch 14MP Color Camera Module

Additional Resources:

• User Guide – Arducam 14MP MT9F001 M12 low distortion Camera Breakout Board
• Arducam Documentation – Arducam Camera Breakout Boards
• Sensor Datasheet – MT9F001
• Github – Arducam USB Camera Shield
• Blog – Arducam USB Camera Shield
• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
