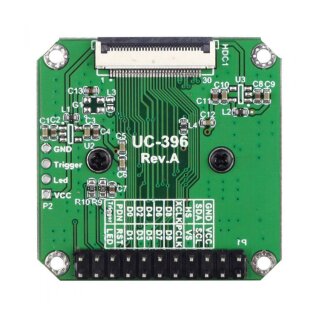

Arducam B0099 CMOS MT9V034 1/3-Inch 0.36MP Color Camera Module

The MT9V034 is a 1/3-inch color wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real world environments.

Note:

This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.

Feature

• 1/3" optical format
• 0.36MP 752 x 480 MT9V034 global shutter sensor
• 6.0 x 6.0 um Pixel size
• 60fps at full resolution
• 4.8V/lux-sec responsivity
• 55db linear, 110db HDR dynamic range
• single 3.3V power input
• Default M12 mount 6mm LS-6020 lens

Application

• Security
• High dynamic range imaging
• Unattended surveillance
• Stereo vision
• Video as input
• Machine vision
• Automation

Package Including

• 1 pcs Arducam CMOS MT9V034 1/3-Inch 0.36MP color Camera Module

Additional Resources:

• User Guide – Arducam 0.36MP MT9V034 Color M12 Camera Breakout Board
• Sensor Datasheet – MT9V034
• Application Note – Arducam USB Camera MT9V034
• Arducam Documentation – Arducam Camera Breakout Board
• Github – Arducam USB Camera Shield
• Video – Global Shutter Camera Module
• Blog – Arducam USB Camera Shield
• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
