Beschreibung

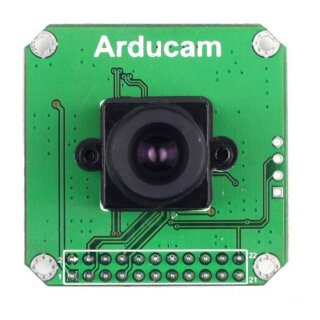

The MT9V022 is a 1/3-inch monochrome wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real world environments.
Note:
This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.
Feature:
1/3" optical format
0.36MP 752 x 480 MT9V022 global shutter sensor
6.0 x 6.0 um Pixel size
60fps at full resolution
4.8V/lux-sec responsivity
55db linear, 110db HDR dynamic range
single 3.3V power input
Default M12 mount 6mm LS-6020 lens
Application
Security
High dynamic range imaging
Unattended surveillance
Stereo vision
Video as input
Machine vision
Automation
Package Including
1 pcs Arducam CMOS MT9V022 1/3-Inch 0.36MP Monochrome Camera Module
Additional Resources:
- User Guide – Arducam 0.36MP MT9V022 Monochrome M12 Camera Breakout Board
- Sensor Datasheet – MT9V022
- Application Note – Arducam USB Camera
- Arducam Documentation – Arducam Camera Breakout
- Github – Arducam USB Camera Shield
- Video – Global Shutter Camera Module
- Blog – Arducam USB Camera
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
| Versandgewicht: | 0,02 Kg |
