Description
Item Description:

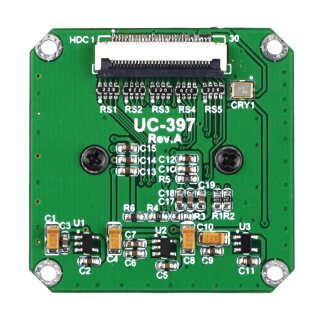

The AR0135 module is a 1/3 inch 1.2MP global shutter Color camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.
Note:
Please note that camera module only can be used together with Arducam USB shield.
Feature:
- 1/3" optical format
- 1.2MP 1280 x 960 AR0135 global shutter sensor
- 3.75 x 3.75 u Pixel size
- 54fps at full resolution
- 5.3V/lux-sec responsivity
- 64dB dynamic range
- single 3.3V power input
- Parallel camera interface
- Default M12 mount 6mm LS-6020 lens
Application:
- Security
- High dynamic range imaging
- Unattended surveillance
- Stereo vision
- Machine vision
- Automation
Package Including:
1 pcs Arducam CMOS AR0135 1/3-Inch 1.2MP Color Camera Module
Additional Resources:
- User Guide – Arducam 1.2MP AR0135 Color M12 Camera Breakout Board
- Arducam Documentation – Arducam 1.2MP AR0135 Color M12 Camera Breakout Board
- Github – Arducam USB Camera Shield
- Video – Global Shutter Camera Module
- Blog – Arducam USB Camera Shield
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
Shipping weight: | 0.05 Kg |
