Arducam B0153 NOIR 8MP Sony IMX219 camera module with CS lens 2718 for Raspberry Pi 4/3B+/3

Arducam B0153 NOIR 8MP Sony IMX219 camera module with CS lens 2718 for Raspberry Pi 4/3B+/3

Artnr.: AC2-201530
GTIN: \000026B0153
Hersteller: Arducam

Arducam NOIR 8MP Sony IMX219 camera module with CS lens 2718 for Raspberry Pi 4/3B+/3

77,90 €

inkl. 19% MwSt.

(65,46 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

Beschreibung
Kundenrezensionen

Item Introduction:

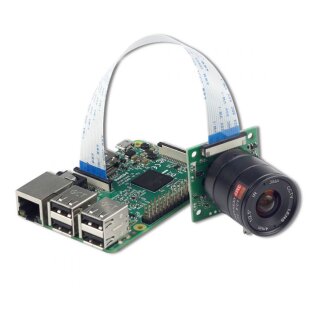

ArduCAM team just released a 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It's capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video. It attaches to Pi by the dedicated standard CSi interface.

It is the supplementary for Raspberry Pi offical camera in order to fulfill the demands for different lens mount, field of view (FOV) and depth of the field (DOF) as well as the motorized IR cut filter for both daylight and night vision.

There are wide range of lens options which can be choose from us.

Features:

High-Definition video camera for Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
Sensor type: Sony IMX219 Color CMOS 8-megapixel
Sensor size: 3.674 x 2.760 mm (1/4" format)
Pixel Count: 3280 x 2464 (active pixels) 3296 x 2512 (total pixels)
Pixel Size: 1.12 x 1.12 um
Lens: CS mount customizable
Angle of View: Horizontal FOV 58 degree
Video: 1280×720 binned and cropped up to 60fps
1080P cropped up to 30fps
1640×1232 full FOV binned mode, up to 30fps
3280×2464 full FOV, 0.1fps to 15fps
Board size: 36 x 36 mm
IR Sensitive: Sensitive to IR light

More information:

Lens specification:

Additional Resources:

Versandgewicht:	0,09 kg
