Item Description:

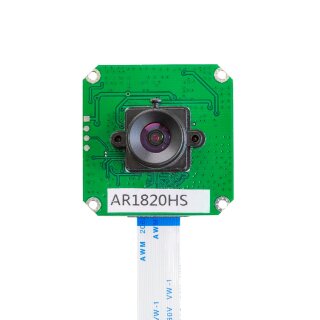

Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3-inch CMOS active-pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS™ BSI Pixel . It can support 18-megapixel (4912H x 3684V) digital still images at 24 fps and a 1080p plus additional 27 percent pixels for electronic image stabilization (2448H x 1378V) in digital video mode at 60 fps and 1080p120 fps.
Note:
The camera module is the RAW sensor which doesn"¯t include ISP (Image Signal Processing) on the image sensor chip, so it only supports manual exposure, manual white balance, manual gain settings.
Features:
Optical format | 1/2.3-inch (4:3) |
Active pixels | 4912H x 3684V |
Pixel size | 1.25um x 1.25um |
Color filter array | RGB Bayer pattern |
ADC resolution | 12-bit, on-chip |
Responsivity | 0.62 V/lux-sec (545 nm) |
Dynamic range | 65.8 dB |
SNRMAX | 36.3 dB |
Output Interface | 4-Lane MIPI |
Frame Rate |
4:3 – 18 Mp full resolution at 15 fps (MIPI-4L) 16:9 – 14 Mp at 20 fps (MIPI-4L) 16:9 – 8 Mp at 30 fps (MIPI-4L) 16:9 – Full HD + 27.5%EIS at 60 fps 16:9 – Full HD at 120 fps |
Lens | Default: low distorion M12 lens (Part Number: M27280M07S) |
IR Sensitive | build-in 650nm IR filter, visible light only |
Application:
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Package Including:
- 1 pcs Arducam CMOS AR1820HS 1/2.3-inch 18MP Color Camera Module
- 1 pcs 80mm 22pin FPC cable
- 1 pcs 150mm 15pin to 22pin FPC cable
Additional Resources:
Versandgewicht: | 0,02 Kg |
