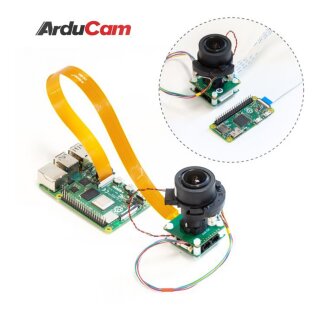

Arducam B016712MP 12MP IMX477 Pan Tilt Zoom(PTZ) Camera for Raspberry Pi 4/3B+/3 and Jetson Nano
Artno.: AC2-201675
Arducam 12MP IMX477 Pan Tilt Zoom(PTZ) Camera for Raspberry Pi 4/3B+/3 and Jetson Nano, IR-Cut Switchable Camera

149.00 € incl. 19% VAT
125.21 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What's more, this kit is based on the IR-CUT switchable 13MP camera to get sharp imaging all day and night.

(!) KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver.

  1. Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
  2. Up or downgrading your OS leads to a kernel bump, and you'll need to re-install a matching driver.
  3. Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don't see it released in time, kindly remind us.
(!) NOTE ON THE IMX477 MIPI LANES

Our IMX477 camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:

  1. Standard Raspberry Pi and Jetson Nano/Xavier NX can't physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it's not a general need.
  2. Extra work, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performance of the platform itself. For example, 4-lane can't unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.
(!) NOTE ON THE SUPPORTED PLATFORM
  1. This camera is released for official Raspberry Pi/Jetson Nano/Xavier NX by default, and it does not support other third-party boards.

Application

This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects.

Features

  • Resolution: High Resolution
  • Shutter Type: Rolling Shutter
  • Color Type: Color
  • Interface: MIPI
  • Platform Support: Raspberry Pi/Jetson Nano/Xavier NX

Specification

  • Sensor: IMX477
  • Pixel Size: 1.55 µm x 1.55 µm
  • Resolution: 4056(H) x 3040(V) 12.3MP
  • Optical Size: 1/2.3"
  • Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
  • Frame Rate on Jetson Nano/Xavier NX:4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps
  • IR sensitivity: Optional with additional Motorized IR-Cut filter
  • Focus: Front group – focus, Back group – Zoom
  • Field of View: 96° – 33° (Horizontal)
  • Focal length: 4.38-10.71mm±5%
  • Controller Board Connector Part Number: S6B-XH-A-1

Package Contents

  • 1pcs Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board
  • 1pcs 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)
  • 1pcs 22-Pin Ribbon Cable (11.8 in/30 cm)
  • 1pcs XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)
  • 4pcs Copper Standoffs for the Base

Documentation

Used on Raspberry Pi

Used on Jetson Nano/Xavier NX

3D Drawing

Video

Used on Raspberry Pi-Raspberry Pi IMX477 Pan Tilt Zoom Camera Guide

Used on Jetson Nano/Xavier NX-Jetson Nano NX IMX477 Pan Tilt Zoom Camera Guide
