Arducam B0167B12 IMX477 12MP PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano/Xavier NX

Arducam B0167B12 IMX477 12MP PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano/Xavier NX

Artno.: AC2-201676
Manufacturers: Arducam

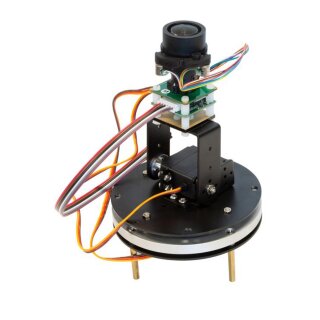

Arducam IMX477 12MP PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano/Xavier NX, IR-Cut Switchable Camera with Metal Base and 2 Digital Servos

239,00 €

incl. 19% VAT

(200,84 € excl. VAT)

On stock (short supply)

Description
Product Reviews

Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What's more, this kit is based on the IR-CUT switchable 12MP camera to get sharp imaging all day and night.

(!) KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver.

Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
Up or downgrading your OS leads to a kernel bump, and you'll need to re-install a matching driver.
Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don't see it released in time, kindly remind us.

(!) NOTE ON THE IMX477 MIPI LANES

Our IMX477 camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:

Standard Raspberry Pi and Jetson Nano/Xavier NX can't physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it's not a general need.
Extra work, specifically camera drivers, is required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performance of the platform itself. For example, 4-lane can't unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

(!) NOTE ON THE SUPPORTED PLATFORM

This camera is released for official Raspberry Pi/Jetson Nano/Xavier NX by default, and it does not support other third-party boards.

Application

This cost-effective and flexible PTZ camera performs better in Day&night vision security camera systems, motion detection, wildlife photography and other machine vision projects.

Features

Resolution: High Resolution
Shutter Type: Rolling Shutter
Color Type: Color
Interface: MIPI
Platform Support: Raspberry Pi/Jetson Nano/Xavier NX

Specification

– Camera & Lens

Sensor: IMX477
Pixel Size: 1.55 µm x 1.55 µm
Resolution: 4056(H) x 3040(V) 12.3MP
Optical Size: 1/2.3"
Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
Frame Rate on Jetson Nano/Xavier NX: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps
IR sensitivity: Optional with additional Motorized IR-Cut filter
Focus: Front group – focus, Back group – Zoom
Field of View: 96° – 33° (Horizontal)
Focal length: 4.38-10.71mm±5%
Controller Board Connector Part Number: S6B-XH-A-1

– PTZ Base

Material: Full metal, aluminum alloy
Shipping Weight: 480g (1.06lb)
Overall Size: 12cm*12cm*13cm(L*W*H)

Package Contents

1pcs Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board
1pcs Pre-assembled Metal Base with 2 Digital Servos
1pcs 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)
1pcs 22-Pin Ribbon Cable (11.8 in/30 cm)
1pcs XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)
4pcs Copper Standoffs for the Base
1pcs Black Acrylic Sheet for fixing the camera module to the u-shaped bracket

Documentation

Used on Raspberry Pi

Used on Jetson Nano/Xavier NX

How to use PTZ Camera with Octopi to monitor 3D printers

Video

Raspberry Pi IMX477 Pan Tilt Zoom Camera Guide

Jetson Nano NX IMX477 Pan Tilt Zoom Camera Guide

Shipping weight:	0,70 kg
