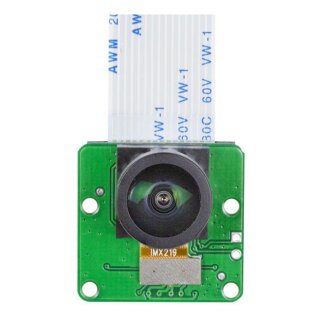

Arducam B0179 IMX219 Wide Angle Camera Module for NVIDIA Jetson Nano/Xavier NX

This Arducam IMX219 camera module is mainly designed for NVIDIA® Jetson Nano and also can be used on other hardware like ARM, DSP, FPGA, etc. The highlight of this camera is its wide field of view.

Note: This camera is released for official Jetson Nano/Xavier NX boards and Raspberry Compute Module by default, and it does not support the standard Raspberry Pi models (like Raspberry Pi 3/3B+/4) and other third-party boards.

Features:

• More Than HD: This camera adopts 1/4" 8 Megapixel IMX219 sensor for sharp image, Max. still resolution is 3280 x 2464 pixels
• Wider Angle of View: This camera module has 175°(D) wide-angle M12 Lens, which provides a much wider Field of View compared to the stock lens on V2 camera module
• Frame Rates: 21fps@8MP, 60fps@1080P, 120fps@720P
• IR Sensitivity: Integral IR filter, visible light only; Focal Length: 2.5 mm; View Angle: 175(D) x 155(H) x 115(V)

• Sony 8MP IMX219 Sensor
• Optical Format: 1/4 inch
• Frame Rate: 21fps@8MP, 30fps@1080p, 120fps@720p
• Data Format: RAW8/RAW10
• EFL: 2.5mm
• F.NO: 2.8
• Focus Type: Fixed Focus
• View Angle: 175(D) x 155(H) x 115(V)
• Interface: MIPI CSI-2 2-lane/4-lane
• IR Sensitivity: Integral IR Filter, visible light only

Lens Options:

Package Includes:

• 1pcs Arducam IMX219 Wide Angle Camera Module for NVIDIA Jetson Nano
• 1pcs 1.0mm pitch 15cm 15pin FPC cable

Additional Resources:

• 3D drawing
• Sensor Datasheet – Sony IMX219
• Arducam Documentation – Arducam Cameras for Jetson Nano
• Video – Arducam 8MP IMX219 Wide Angle NVIDIA Camera
• Blog – Arducam 8MP IMX219 Wide Angle NVIDIA Camera
• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
