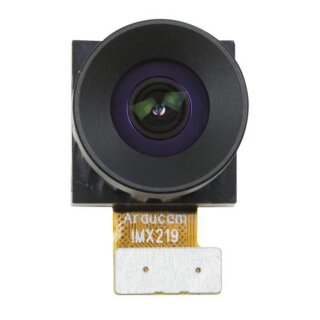

Arducam B0184 8MP M12 Lens Drop-in Replacement for Raspberry Pi Camera Module V2
Beschreibung
This Arducam IMX219 low distortion lens camera module is designed mainly for Raspberry Pi V2 camera board and replace the default standard IMX219 camera module to get a low distortion of view (<3%). It can be used for drone, robot, action camera and 3D scanning applications.
Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.8mm
- F.NO: 2.8
- View Angle: 75 Deg. (Horizontal)
- Interface: MIPI CSI-2 2-lane
- IR Sensitivity: Visible light, integral IR Filter
Lens Options:
| SKU | Format | FOV on 1/4" sensor | Focal Length |
| LN006 | 1/4'' | 100° | 1.8mm |
| LN008 | 1/2.5'' | 140° | 1.56mm |
| LN011 | 1/2.5'' | 45° | 4mm |
| LN012 | 1/2.5'' | 55° | 3.6mm |
| LN013 | 1/2.7'' | 75° | 2.8mm |
| LN014 | 1/2.7'' | 90° | 2.1mm |
| LN015 | 1/4'' | 63° | 3.2mm |
Package Includes:
- 1pcs Arducam IMX219 Low Distortion M12 Mount Camera Module
Note:
- Raspberry Pi V2 camera board is needed to work with this camera module.
Additional Resources:
- Sensor Datasheet – Sony IMX219
- 3D Drawing – Arducam IMX219 Camera Module(drop-in replacement for V2 camera)
- Used on Raspberry Pi
- Used on Jetson Nano
- Video – Arducam 8MP IMX219 Low Distortion Camera for Raspberry Pi (No Board)
- Video – Arducam 8MP IMX219 Low Distortion NVIDIA Camera
- Blog – Arducam 8MP IMX219 Low Distortion NVIDIA Camera
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
- 3D Drawing- Case
