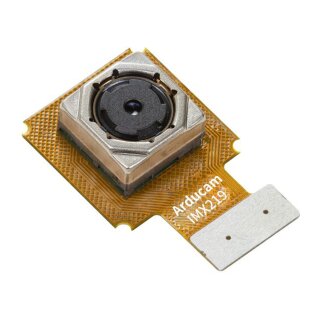

Arducam B0190 IMX219 Auto Focus IR Sensitive (NoIR) Camera Module
Beschreibung
This Arducam IMX219AF camera module is designed mainly for NVIDIA® Jetson Nano platform and also can be used on other hardware like ARM, DSP, FPGA, etc.
The highlight of this camera is that the lens focus is programmable by software, and Arducam team provide an opensource code to implement software auto-focus function for Jetson Nano.
Note: By default, the examples reset the focus as you quit the program or power off. To fix the focus, please alter the example code on your own.
Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.8mm
- F.NO: 2.2
- Focus Type: Programmable/Auto Focus
- View Angle: 77.6 (Diagonal)
- Interface: MIPI CSI-2 2-lane
- IR Sensitivity: Visible light, without IR Filter
- Horizontal FoV: 65°
- Vertical FoV: 51°
Application:
- Unmanned Aerial Vehicles (UAVs)
- Building Drones
- Autonomous Robotic Systems
- Mobile Medical Imaging
- Intelligent Video Analytics (IVA)
Package Includes:
- 1pcs Arducam IMX219-AF Programmable/Auto Focus IR Sensitive (NoIR) Camera Module
Note:
- Raspberry Pi V2 camera board or Arducam Jetson Nano IMX219 camera board is needed to work with this camera module.
Additional Resources:
- Sensor Datasheet – Sony IMX219
- Used on Jetson
- Used on Raspberry Pi
- Video – Arducam 8MP IMX219 Auto Focus Camera for Raspberry Pi (No Board)
- Video – Arducam 8MP IMX219 Auto Focus NVIDIA Camera
- Blog – Arducam 8MP IMX219 Auto Focus NVIDIA Camera
- 3D Drawing- Case
- How to Use Motorized Focus Camera Module
