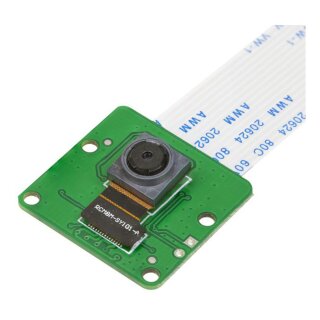

Arducam B0191 IMX219 Visible Light Fixed Focus Camera Module for NVIDIA Jetson Nano/Xavier NX

This Arducam IMX219 camera module is designed mainly for NVIDIA® Jetson Nano platform and also can be used on other hardware like ARM, DSP, FPGA, etc.

NOTE: This camera is released for official Jetson Nano/Xavier NX boards and Raspberry Compute Module by default, and it does not support the standard Raspberry Pi models (like Raspberry Pi 3/3B+/4) and other third-party boards.

• More Than HD: This camera adopts 1/4" 8 Megapixel IMX219 sensor for sharp image, Max. still resolution is 3280 x 2464 pixels
• Frame Rates: 21fps@8MP, 30fps@1080P, 120fps@720P
• Focal Length: 3.04 mm; Angle of View: H=62.2 degree, V=48.8 degree
• IR Sensitivity: Integral IR filter, visible light only

• Shutter Type: Rolling Shutter
• Color Type: Color
• IR Sensitivity: Visible light, 650nm IR Filter
• Interface: MIPI
• Format: RAW Bayer

• Sensor type: IMX219
• Optical Size: 1/4 inch
• Lens spec: EFL: 3.04mm, F.NO: 2.0, Focus Type: Fixed Focus, View Angle: 62.2(Horizontal)
• Interface Type: 2-Lane MIPI
• Output format: RAW10
• Focus distance: 200mm ~ infinity

• Unmanned Aerial Vehicles (UAVs)
• Building Drones
• Autonomous Robotic Systems
• Mobile Medical Imaging
• Intelligent Video Analytics (IVA)

• Sensor Datasheet – Sony IMX219
• Arducam MIPI Cameras for Jetson Nano

• 1pcs Arducam IMX219 Visible Light Fixed Focus Camera Module
• 1pcs 1.0mm pitch 15cm 15pin FPC cable
