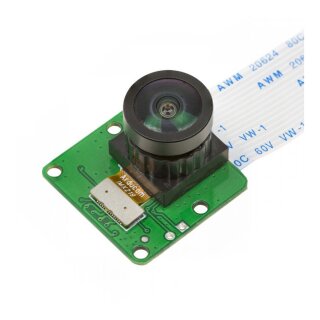

Arducam B0193 IMX219 Wide Angle IR Sensitive (NoIR) Camera Module for NVIDIA Jetson Nano/Xavier NX
Beschreibung
This Arducam IMX219 NoIR camera module is mainly designed for NVIDIA® Jetson Nano and also can be used on other hardware like ARM, DSP, FPGA, etc. The highlight of this camera is its wide field of view.
NOTE: This camera is released for official Jetson Nano/Xavier NX boards. It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+) , but it does not support the standard Raspberry Pi models (like Raspberry Pi 3/3B+/4) and other third-party boards.
Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@8MP, 30fps@1080p, 120fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.5mm
- F.NO: 2.8
- Focus Type: Fixed Focus
- View Angle: 175(D) x 155(H) x 115(V)
- Interface: MIPI CSI-2 2-lane/4-lane
- IR Sensitivity: No IR Filter, sensitive to Infrared light.
Package Includes:
- 1pcs Arducam IMX219 Wide Angle NoIR Camera Module for NVIDIA Jetson Nano
- 1pcs 1.0mm pitch 15cm 15pin FPC cable
Additional Resources:
- Sensor Datasheet – Sony IMX219
- Arducam Documentation – Arducam Cameras for Jetson Nano
- Video – Arducam 8MP IMX219 Wide Angle NVIDIA Camera(NoIR)
- Blog – Arducam 8MP IMX219 Wide Angle NVIDIA Camera(NoIR)
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
- 3D Drawing
