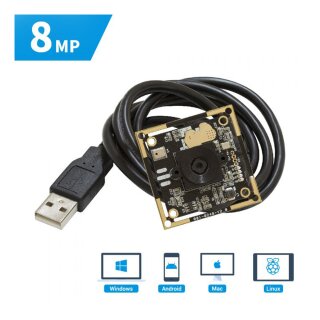

Arducam B0197 8MP 1080P Auto Focus USB Camera Module with Microphone

The B0197 is a new member of Arducam's USB camera family. It's an 8MP, UVC compliant, autofocus (AF) based on the 1/3.2" Sony IMX179 image sensor, USB 2.0 camera.

Specifications
- Sensor: 1/3.2" IMX179AF
- Resolution: 8MP 3264H x 2448V
- Data Format: MJPG/YUY2
- Frame Rate: MJPG 15fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480

Lens
- Field of View (FOV): D= 72°, H= 60°, V= 47°
- Lens Mount: M6.5
- Focusing Range: 40mm to infinity
- IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: single microphone (optional dual channel)
- System Compatibility: Win7/8/10, Linux, Mac, and Android with UVC

Power
- Power Supply: USB powered 5V
- Working Current: MAX 350mA

Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C).
- Dimension: 36mmx36mm (Mount compatible with 28x28mm)
- Cable Length: 3.3ft (1M)

• Arducam Documentation - UVC Camera Module

• 3D Drawing - Arducam IMX179 Autofocus UVC Camera Module

• User Manual - Arducam IMX179 Autofocus UVC Camera Module
