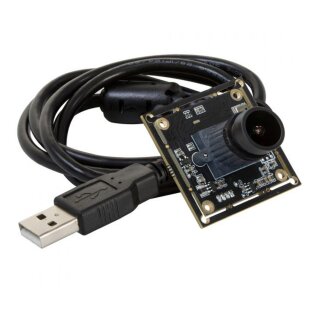

The B0201 is a new member of the Arducam's USB camera family. It's a 2MP, UVC compliant, wide angle, low light, based on the 1/2.8" Sony IMX291 image sensor USB 2.0 camera.
Specifications
- Sensor: 1/2.8" IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80dB
- USB Connector: B4B-ZR(LF)(SN)
Lens
- Field of View (FOV): D= 120°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
Part number: LN004
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio:Single microphone (optional dual channel).
- System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)
- Serial Number: Supports modifying Serial number.
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.:-4°F~158°F (-20°C~+70°C)
- Dimension:38mmx38mm (Mount compatible with 34x34mm, 28x28mm)
- Cable Length: 3.3ft (1M)
Additional Resources
User Guide
Datasheet
3D drawing
How to modify the serial number
