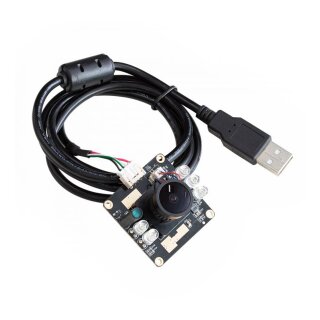

Arducam B0205 1080P Day & Night Vision USB Camera Module

The B0205 is a new member of the Arducam's USB camera family. Based on 1/2.7" OV2710, it's a 2MP, UVC compliant, wide angle USB 2.0 camera with motorized IR-Cut filter and infrared LEDs. The motorized (switchable) IR-CUT filter and infrared LEDs can be triggered by the photoresistor according to the light environment to be ON/OFF to block or pass the infrared light. It can be widely used in wildlife photography, home security system, baby camera, etc.

Specifications
- Sensor: 1/2.7" OV2710
- Resolution: 2MP 1920 x 1080
- Data Format: MJPG/YUY2
- Frame Rate: MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 480.

- Connector: SWR201-NRTN-S04-RL-WH

Lens
- Field of View (FOV): H= 100°, D=138°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity
- IR Sensitivity: Integral IR filter, switch automatically based on light condition (only visible light during the daylight and IR sensitivity during the night

Functionality and Compatibility
- Auto Control: Saturation, Contrast, Acutance, White balance, Exposure.
- System Compatibility: Windows, Linux, Mac and Android with UVC.

- Serial Number: Supports modifying the Serial Number.

Power
- Power Supply: USB powered 5V
- Working Current: MAX 500mA

Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).

- Dimension: 38mmx38mm

- Cable Length: 3.3ft (1M)

- Connector No: S4B-ZR(LF)(SN)

Additional Resources

User Guide

3D Drawing

Datasheet

How to modify the serial number
