Beschreibung
Item Description:

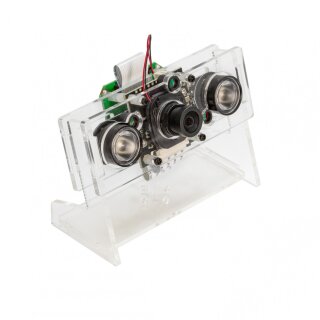

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this OV5647 camera module for Jetson Nano. It is designed for both daylight and night vision photography with build-in IR cut filter and two infrared LED illuminator boards. The IR cut filter and the infrared LEDs are automatically ON/OFF according to the light condition and it can be widely used in wild life photography, agriculture NDVI applications and etc.
Key Specifications:
- CMOS size: 1/4inch
- Resolution: 5MP 2592x1944
- Pixel Size: 1.4 x 1.4 um
- Lens: f=2.25mm
- Field of View: Horizontal 85 degree
- Fixed Focus: 30 cm to infinity
- Max frame rate: 30fps
- Video: 1080p at 30 fps, up to 90 fps Video at VGA
- Provides 3.3V power output for infrared LEDs
- Build-in Motorized IR-CUT filter
- Two infrared illuminate LEDs with heat sinks
- Dimension: 36mm X 36mm
- 4 screw mounting holes
Driver Features:
- Support RAW8/10 bayer format
- Support Standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
- Support Single Line Driver Installation Command
- Support OpenCV Friendly and Provides Source Code Demonstration
Application:
- Smart robots
- Wide life Photograph
- Agriculture NDVI
Package Including:
- 1pcs OV56547 IR-CUT Camera
- 1pcs Arducam Adapter Board for Jetson Nano
- 2pcs Infrared LED Board
- 2pcs heat sink
- 1pcs 15cm (5.9 inch) flat ribbon cable 15pin 1.0mm pitch to 15 pin 1.0mm pitch
- 1pcs 15cm (5.9 inch) flat ribbon cable 15 Pin 1.0mm pitch to 22 pin 0.5mm pitch
- Acrylic case for the camera module
Additional Resources:
| Versandgewicht: | 0,09 Kg |
