Arducam B0217J5 5MP Synchronized Stereo Camera Bundle Kit for Jetson Nano

As part of Arducam Camarray multi-camera solutions, Arducam released this Synchronized Stereo Camera Bundle Kit for Jetson Nano, which allows customers to connect two 5MP OV5647 cameras to a single Jetson Nano board, and takes images or video at the same time, even more important they are fully synchronized. The highlight of this kit is that it incorporates Arducam proprietary ArduChip solution, and extends the usage of the single Jetson Nano camera port, it cheats the board as if only one camera connected.

• Shutter Type: Rolling Shutter
• Color Type: Color
• Interface: MIPI
• Platform Support: Jetson Nano

• Sensor type: OV5647
• Pixel size: 1.4 x 1.4 um
• Optical Size: 1/4inch
• FoV (D/H/V): 66°/54°/41°
• Interface Type: 2-Lane MIPI
• Two MIPI camera inputs and one MIPI camera output
• Support 1, 2 and 4 lane MIPI cameras input up-to 800Mbps/lane
• Support camera side-by-side combine, channel 0 and channel 1 software switching on the fly
• Support digital pan in half resolution combine, programmable pan speed control
• HAT size: 65 x 56 mm

• Support Standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
• Support Ardcuam Stereo Camera HAT
• Single Line Driver Installation Command
• OpenCV Friendly and Provides Source Code Demonstration

• Stereo Vision
• 360° Camera
• Advanced Surveillance Camera
• Enhanced Vision Goggles

• Arducam MIPI Cameras for Jetson Nano
• User Guide-Arducam Shield V2
• OV5647 Datasheet

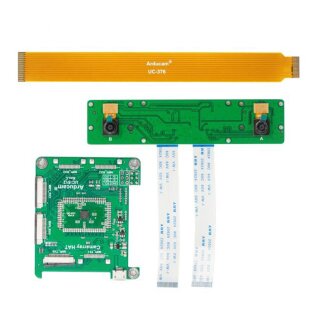

• 1pcs Arducam Camarray Stereo Camera HAT
• 1pcs 5MP Arducam Stereo Camera Board
• 2pcs Arducam 80mm 22pin Ribbon Cable
• 1pcs Arducam 150mm 15pin to 22pin Ribbon Cable

Arducam Jetson Nano Camera Modules

You May Also Like

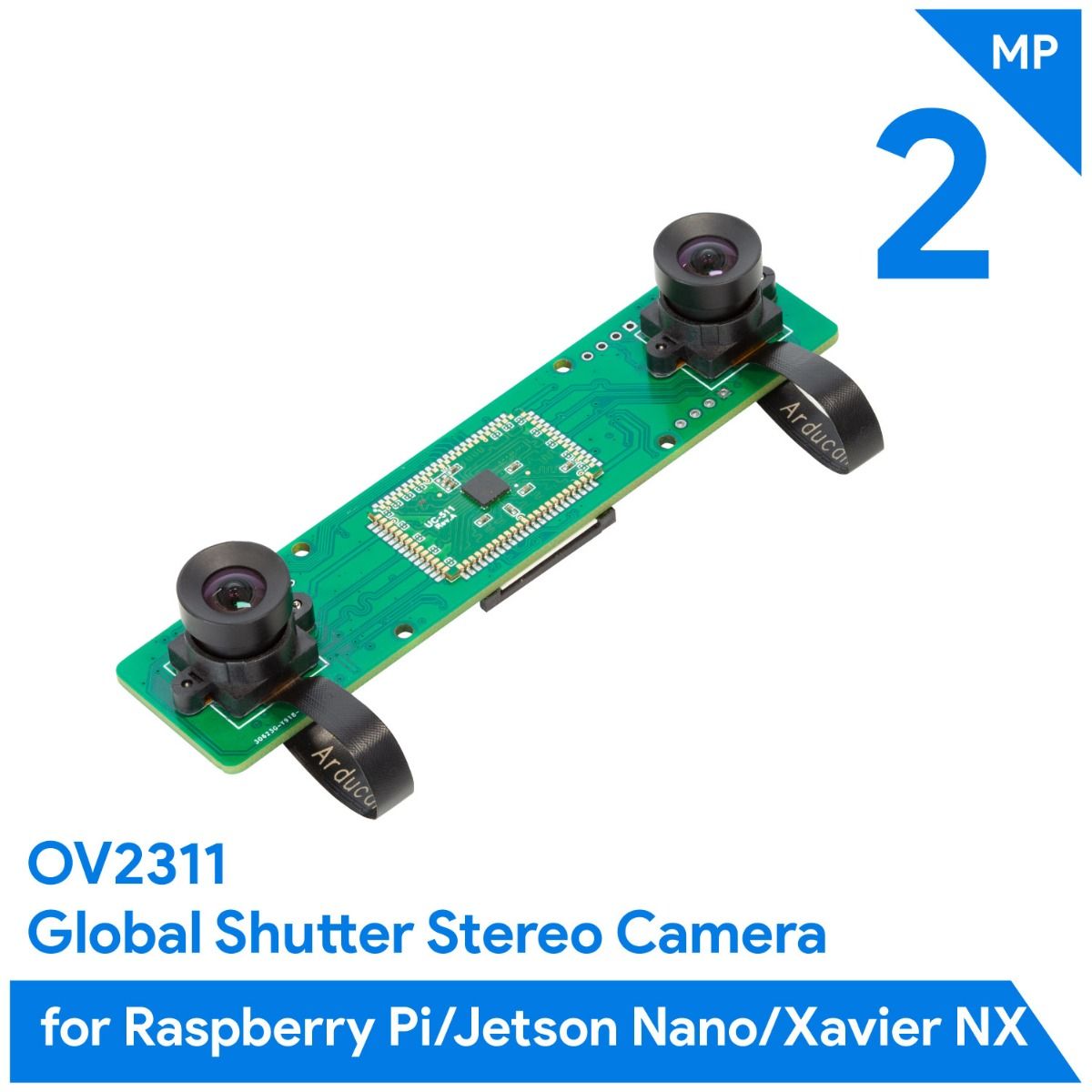

Arducam 2MP*2 Stereo Camera MIPI Module>>
