Description
Item Description:

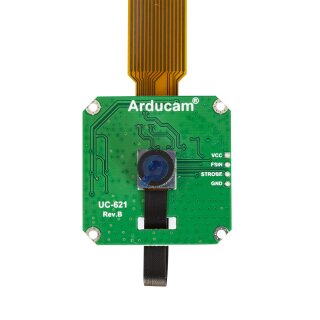

Arducam 2MP Global shutter OV2311 camera module is mainly designed for Raspberry pi boards, and it can be connected directly to RPi"¯s CSI-2 camera interface without additional hardware. This camera is based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.
Features:
Sensors- Sensor: Global Shutter OV2311 Monochrome
- Pixel size: 3 µm x 3 µm
- Active array size: 1600 x 1300
- Optical Format size: 1/2.9"
- Maximum image transfer rate: 1600 x 1300: 60 fps
- Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
- Input clock frequency: 6~27 MHz
- Max S/N ratio: 37.4 dB
- Dynamic range: 68 dB
- Lens Thread: M9 x 0.25P
- Lens Field of View(FoV): 55"ã(H)
- IR Sensitivity: built-in 650nm IR Filter, visible light only
- Output interface: 2-lane MIPI
- Output formats: RAW 8/10 bit
Applications:
- Augmented and virtual reality
- Drones
- 3D imaging
- Machine vision
- Industrial bar code scanning
- Industrial automation
Package Including
- 1pcs Arducam 2MP OV2311 Global Shutter Mono Visible Light Camera Module
- 1pcs Arducam 80mm 22pin Ribbon FPC Cable
- 1pcs Arducam 150mm 15pin to 22pin Ribbon FPC Cable
| Shipping weight: | 0.02 Kg |
