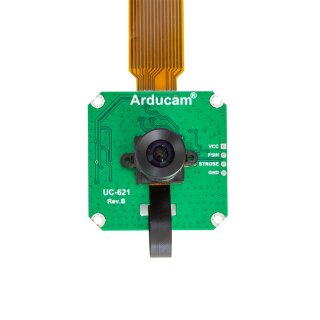

Arducam B0219 2MP OV2311 Monochrome NoIR Global Shutter Camera for Raspberry Pi, M12 S-Mount

Item Description:

Arducam 2MP OV2311 Global shutter camera module is mainly designed for Raspberry pi boards, and it can be connected directly to RPi"¯s CSI-2 camera interface without additional hardware. This camera is based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Features:

• Sensor: Global Shutter OV2311 Monochrome
• Pixel size: 3 µm x 3 µm
• Active array size: 1600 x 1300
• Optical Format size: 1/2.9"
• Maximum image transfer rate: 1600 x 1300: 60 fps
• Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
• Input clock frequency: 6~27 MHz
• Max S/N ratio: 37.4 dB
• Dynamic range: 68 dB

• Lens Thread: M12 x 0.5P
• Field of View(FoV): 83"ã(H)
• IR Sensitivity: without IR Filter, IR sensitive

• Output interface: 2-lane MIPI
• Output formats: RAW 8/10 bit

Applications:

• Augmented and virtual reality
• Drones
• 3D imaging
• Machine vision
• Industrial bar code scanning
• Industrial automation

Package Including

• 1pcs Arducam 2MP OV2311 Global Shutter NoIR Mono Camera Module
• 1pcs Arducam 80mm 22pin Ribbon FPC Cable
• 1pcs Arducam 150mm 15pin to 22pin Ribbon FPC Cable
