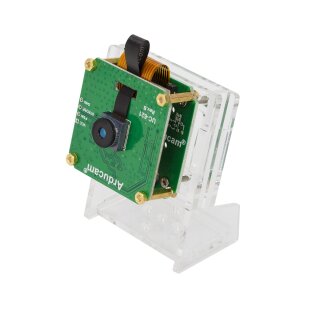

Arducam B0220 2MP OV2311 Monochrome NoIR Global Shutter Camera for Jetson Nano

Item Description:

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this 2MP Global shutter OV2311 camera module, and it can be connected directly to RPi"¯s CSI-2 camera interface without additional hardware. Based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology, it can provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Features:

• Sensor: Global Shutter OV2311 Monochrome
• Pixel size: 3 µm x 3 µm
• Active array size: 1600 x 1300
• Optical Format size: 1/2.9"
• Maximum image transfer rate: 1600 x 1300: 60 fps
• Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
• Input clock frequency: 6~27 MHz
• Max S/N ratio: 37.4 dB
• Dynamic range: 68 dB

• Lens Thread: M9 x 0.25P
• Lens Field of View(FoV): 55"ã(H)
• IR Sensitivity: built-in 650nm IR Filter, visible light only

• Output interface: 2-lane MIPI
• Output formats: RAW 8/10 bit

Driver Features:

• Support Gray, Y10, Y16
• Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
• Support External Trigger Global Shutter Camera
• Support Single Line Driver Installation Command
• Support OpenCV Friendly and Provides Source Code Demonstration
• Support Dual Camera Synchronzation

Applications:

• Augmented and virtual reality
• Drones
• 3D imaging
• Machine vision
• Industrial bar code scanning
• Industrial automation

Package Includes:

• 1pcs Arducam 2MP OV2311 Global Shutter Mono Visible Light Camera Module
• 1 pcs Arducam Adapter Board for Jetson Nano
• 1pcs Arducam 73mm 15pin to 22pin Ribbon FPC Cable
• 1pcs Arducam 150mm 15pin Ribbon FPC Cable
• Acrylic case for the camera module

Additional Resources:

• Arducam Documentation – Arducam Cameras for Jetson Nano
• Video – Arducam MIPI Camera Module for Jetson Nano
• Blog – Arducam MIPI Camera Modules for Jetson Nano
