Description

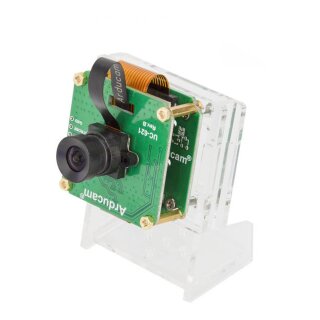

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this 2MP OV2311 Global shutter camera module, and it can be connected directly to RPi's CSI-2 camera interface without additional hardware.
Based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS? technology, it provides full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and is capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.
Features
Sensors
- Sensor: Global Shutter OV2311 Monochrome
- Pixel size: 3 µm x 3 µm
- Active array size: 1600 x 1300
- Optical Format size: 1/2.9?
- Maximum image transfer rate: 1600 x 1300: 60 fps
- Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
- Input clock frequency: 6~27 MHz
- Max S/N ratio: 37.4 dB
- Dynamic range: 68 dB
Lens
- Lens Thread: M12 x 0.5P
- Lens Field of View (FoV): 83° (H)
- IR Sensitivity: without IR Filter, IR sensitive
Camera Module
- Output interface: 2-lane MIPI
- Output formats: RAW 8/10 bit
- Resolution & Frame Rate: 1600×1300@60fps, 1600×1080@80fps, 1280×720@120fps
- Resolution & Frame Rate (NVIDIA Orin NX): 1600×1300@60fps, 1600×1080@80fps, 1280×720@120fps
- Minimum exposure time: 1 row period (11.3us at the resolution of 1600×1300 on Jetson Nano)
Driver Features
- Support Gray, Y10, Y16
- Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
- Support External Trigger Global Shutter Camera
- Support Single Line Driver Installation Command
- Support OpenCV Friendly and Provides Source Code Demonstration
- Support Dual Camera Synchronization
Applications
- DSC
- Machine Vision
- Robotics
- Face Recognition
Package includes
- 1pcs Arducam 2MP OV2311 MIPI Camera Module
- 1pcs 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- Acrylic case for the camera module
| Shipping weight: | 0.05 Kg |
