Arducam B0223 OV9281 1MP Global Shutter NoIR Camera Module for Jetson Nano
Description
As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released OV9281 global shutter monochrome (B&W) 1280x800 resolution MIPI camera module for Jetson Nano, and it is based on 1/4-inch Omnivision OV9281 image sensor which adopts OmniPixel3-GS? technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 120fps in full resolution at 1-lane MIPI bus with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.
- Shutter Type: Global Shutter
- Color Type: Mono
- IR Sensitivity: sensitive to IR, No IR filter
- Interface: MIPI
- Format: RAW Bayer
- Platform Support: Jetson Nano
- Sensor type: OV9281
- Pixel size: 3 µm x 3 µm
- Resolution: 1280 x 800
- Optical Size: 1/4 inch
- Lens spec: Focusing Range: 30mm ~ infinite, Lens FoV: 130°(D) 110 °(H) 90°(V)
- Resolution & Frame Rate:
RAW8/RAW10: 1280x800@80fps, 1280x720@80fps,640x400@240fps - Interface Type: 2-lane MIPI serial output
- Output format: 8/10-bit BW RAW
- Board Size: 40mm x 40mm
- Support Gray, Y10, Y16
- Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
- Support External Trigger Global Shutter Camera
- Support Single Line Driver Installation Command
- Support OpenCV Friendly and Provides Source Code Demonstration
- Support Dual Camera Synchronzation
- Security
- High dynamic range imaging
- Unattended surveillance
- Stereo vision
- Machine vision
- Automation

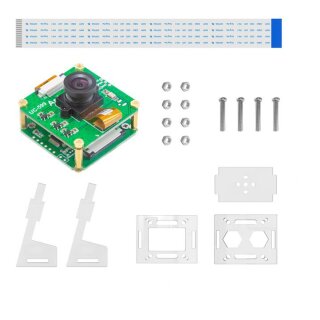

- 1pcs Arducam OV9281 1MP Mono Global Shutter MIPI Camera
- 1pcs 15mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- Acrylic case for the camera module
| Shipping weight: | 0.07 Kg |
