Arducam B0225 1MP OV9281 130° Monochrome 850nm Global Shutter Camera for Raspberry Pi, M12 S-Mount

Arducam B0225 1MP OV9281 130° Monochrome 850nm Global Shutter Camera for Raspberry Pi, M12 S-Mount

Artnr.: AC2-202250
Hersteller: Arducam

46,10 €

inkl. 19% MwSt.

(38,74 € exkl. MwSt.)

zzgl.

ausverkauft

Item Description:

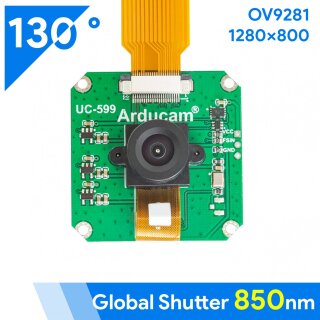

Arducam global shutter monochrome (B&W) 1280x800 resolution OV9281 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi"¯s CSI-2 camera interface without additional hardware. This camera is based on 1/4-inch Omnivision OV9281 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 120fps in full resolution at 1-lane MIPI bus with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Note:

This camera and RPI driver doesn"¯t support ISP functions like AEC/AGC etc. Arducam SDK for this camera supports RAW/JPEG/H.264 format, and manual or software auto exposure/gain/white balance.

Key Specifications:

Sensor: Monochrome global shutter OV9281
Pixel Size: 3 µm x 3 µm
Active array size: 1280 x 800
Optical Size: 1/4 inch
Focusing Range: 30mm ~ infinite
Output interface: 2-lane MIPI serial output
Output formats: 8/10-bit BW RAW
Maximum image transfer rate: 1280 x 800@120 fps
Board Size: 40mm x 40mm
Lens FoV: 130°(D)/110°(H)/90°(V)
IR Sensitivity: 850nm only pass filter

Application:

Security
High dynamic range imaging
Unattended surveillance
Stereo vision
Machine vision
Automation

Package Including:

1pcs Arducam OV9281 1MP Mono Global Shutter MIPI Camera with 130deg 850nm only M12 Mount
1pcs 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
1pcs 80mm 22pin 0.5mm pitch FPC cable

Additional Resources:

Versandgewicht:	0,03 kg
