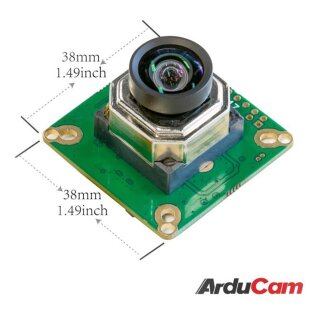

Arducam B0273 12MP IMX477 Motorized Focus High Quality Camera for Jetson Nano/Xavier NX

Arducam B0273 12MP IMX477 Motorized Focus High Quality Camera for Jetson Nano/Xavier NX

Artno.: AC2-202730
GTIN: X002QED5YH
Manufacturers: Arducam

Arducam 12MP IMX477 Motorized Focus High Quality Camera for Jetson Nano/Xavier NX

95,90 €

incl. 19% VAT

(80,59 € excl. VAT)

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Description
Product Reviews

Overview

This Arducam IMX477 High Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. Other than its motorized focus, it offers the same picture quality and camera controls as the Raspberry Pi High Quality camera. However, the Arducam High Quality Camera Modules do not require any hardware modifications to work with the Jetson Nano/Xavier NX Platform.

★ KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver.

Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
Up or downgrading your OS leads to a kernel bump, and you'll need to re-install a matching driver.
Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don't see it released in time, kindly remind us.

(!) NOTE ON THE IMX477 MIPI LANES

Our IMX477 camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:

Standard Raspberry Pi and Jetson Nano/Xavier NX can't physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it's not a general need.
Extra work, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performance of the platform itself. For example, 4-lane can't unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano/Xavier NX is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

(!) NOTE ON THE LENS

It is not recommended to replace the default lens on the camera module, contact us first if needed.

(!) NOTE ON THE SUPPORTED PLATFORM

This camera is released for official Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards.

Features & Specs

IMAGE SENSOR

Sensor Model: IMX477
Shutter Type: Rolling shutter
Sensor resolution: 4056 x 3040 pixels, 12.3MP
Image Sensor Format: Type 1/2.3"
Pixel Size: 1.55 µm x 1.55 µm
Focus Distance: 80mm to infinity
Frame Rate: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps. Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.

LENS ASSEMBLY

Model No: M23390H08
Optical Format: 1/2.3"
Focal Length: 3.9mm
Aperture: F2.8
Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
Mount: M12 mount
Back Focal Length: 4.49mm
MOD: 0.3m
Dimension: F14×18.67mm
Weight: 5g

Package Contents

1 × Arducam 12MP IMX477 Motorized Focus High Quality Camera for Jetson Nano and Jetson Xavier NX
1 × 300mm 15pin-22pin flex ribbon cable

Documentation

Shipping weight:	0,03 kg
