Arducam B0279 for Jetson IMX477 HQ Camera Board

Arducam just released this High Quality camera module for Jetson Nano/Xavier NX, an IMX477 camera board with 3 hole pitches. You can use this camera module on Jetson Nano/Xavier NX natively with ISP features. No hardware modifications required, just install the driver and you are good to go.

NOTE: This camera is mainly designed for the Jetson Nano. It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+), but is not compatible with standard Raspberry Pi models (like Raspberry Pi 3/3B+/4).

• A Can't-Miss Update to IMX219 - Much better picture quality and lens flexibility, thanks to 53% more pixels, 92% larger pixel size, 192% larger imaging area, and a CS-Mount. Maximum still resolution at 4056 × 3040, frame rates: 30fps@Full 12.3MP, 60fps@1080P. NOTE:
• Accelerated by Jetson Hardware ISP Engine - Support NVIDIA Argus Camera plugin for H264 encoding, JPEG snapshots, as well as gain, exposure, framerate, and group, hold control.
• Only a driver away from Plug-and-Play - The Raspberry Pi HQ camera module requires hardware modification before installing the Jetson IMX477 driver, which could bring potential damage and void the warranty. Ours don't.
• 4-Lane Camera for the Future - Route out all 4 data lanes to the camera connector for customized carrier boards with 4-lane CSI connector and future 4-lane camera driver updates.

• Sensor: IMX477
• Optical Format: 1/2.3" (diagonal 7.857mm)
• Resolution: 4056(H) x 3040(V) 12.3MP
• Pixel Size: 1.55um x 1.55um
• IR Sensitivity: Visible light
• Interface: 4-lane MIPI CSI-2
• Default Lens Mount: CS-Mount
• Frame Rate: Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.

• Board Size: 38mm×38mm
• Hole Pitch: Compatible with 29mm, 30mm, 34mm

Note: For the new version(R32 4.4), please refer to the following link:
https://github.com/ArduCAM/MIPI_Camera/releases

3D drawing

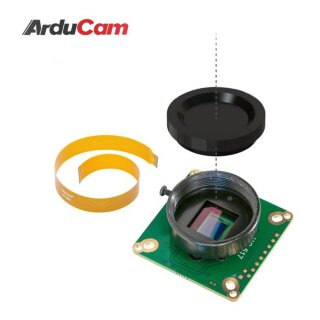

• 1pcs 12.3MP IMX477 camera board with dust cap for Jetsons

• 1pcs 11.8"(30cm) camera cable

• C/CS Lens is NOT INCLUDED.

• Pi 2/3/4/Zero WON'T WORK WITH IT. ONLY THE COMPUTE MODULES DO.

• The camera driver MUST be installed: https://github.com/ArduCAM/MIPI_Camera/tree/master/Jetson/IMX477/driver

• It can't work on the standard Raspberry Pi models (like Raspberry Pi 3/3B+/4).

• This camera can just be supported by Jetson nano and Xavier NX at present, any other Jetson boards will not be supported.
