Arducam B0282 CSI to HDMI Adapter Board for 12MP IMX477 Raspberry Pi HQ Camera

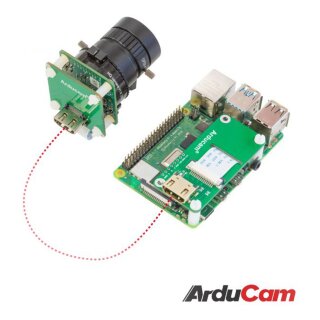

The CSI-HDMI adapter board is designed for the RPi High Quality camera board to extend the camera over the long cables while keeping the high-speed signals away from noise and interference. It can also be used with V1 and V2 Raspberry Pi camera board, but it's better for HQ camera because of the same board size and hole pitch, which makes it has no hassle to assemble them together. With high speed HDMI cable, the camera can run over 5 meters, which high extends the usage of the Raspberry pi cameras.

• This Arducam CSI to HDMI adapter bundle is to extend the Raspberry Pi High Quality camera cable with a standard HDMI cable, it can also work with the RPi V1 and V2 cameras.
• By using high speed HDMI cable, the camera can run over 10 meters (more than 10 meters wasn't tested), which high extends the usage of the Raspberry Pi High Quality cameras
• Same sized with IMX477 HQ camera board, and compatible location and pitch of mounting hole, just assemble and connect the HDMI board with the camera board, with the included accessories and camera cable.
• If you need a longer and stronger cable with solid connections, or you prefer the HDMI cable to ribbon cable, it is the right thing for you. This system works with all Raspberry Pi models.
• You'll be getting an HDMI adapter board to RPi, an HDMI adapter board to the camera, 2 60mm 15pin camera cables, a 78mm 15pin to 22pin camera cable for Arducam IMX477 series, and a set assemble accessories.

Support all Raspberry Pi A&B Models

Support Raspberry Pi camera board V1 (5MP OV5647), Raspberry Pi camera board V2 (8MP IMX219) and Raspberry Pi High Quality camera board (12.3MP IMX477).

HDMI cables can be up to 5 meters (test IMX477 on Raspberry Pi)

Board Size

• Adapter board to camera: 38mm x 38mm
• Adapter board to Rpi: 65mm x 30mm

Hole Pitch

• Adapter board to camera: Compatible with 34mm x 34mm, 30mm x 30mm, 29mm x 29mm.
• Adapter board to Rpi: 58mm x 23mm

• 1pcs adapter board to Raspberry Pi
• 1pcs adapter board to camera board
• 2pcs 60mm 15pin FPC cable
• 1pcs 78mm 15pin to 22pin FPC cable for Arducam IMX477 camera board
• 1 set assemble accessories
