Overview

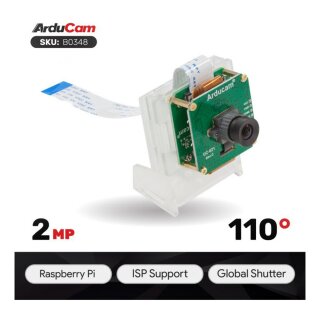

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.
Specs
– Image Sensor: 2MP OG02B10
– Resolution: 1600H×1300V
– Pixel Size: 3µm(H)×3µm(V)
– Optical Format: 1/2.9"
– Lens Spec: M12 lens mount, focal length of 2.8mm±5%, F/2.8±5%, 110 degrees horizontal field of view (HFoV)
– IR Sensitivity: Integral IR filter, visible light only
– Frame Rate: 1600×1300@60fps; 1600×1080@80fps; 1280×720@120fps
– Sensor Output Format: RAW10, RAW8
– ISP Output Format: The output image format of JPG, YUV420, RAW, DNG; The output video format of MJPEG, H.264
– Interface Type: 2-Lane MIPI
– Board Size: 38mm×38mm
Documentation
Pivariety OG02B10 2MP Color Global Shutter Camera Module
Access OG02B10 2MP Color Global Shutter Camera using external trigger snapshot mode
User Guide
Acrylic Bracket Assembly Guide
3D Drawing
Package Contents
– 1 x Arducam 2MP OG02B10 Color Camera Module
– 1 x 150mm 15pin to 22pin FPC cable
Video
