Description
Overview
Arducam 16MP IMX519 (NOIR) High-Resolutions camera is an exclusive camera board that takes what Raspberry Pi V1, V2, and HQ have to o?er, and excels in every single aspect.
It takes zero compromises in specs. With a resolution of 16 megapixels (compared to 8MP and 12MP), a stock lens, a V2-like form factor, and boatloads of improvements, the camera provides a better choice for a whole world of industrial/consumer/etc. applications, it's compatible with any existing Pi models, work with the latest software from the foundation, and leverages the same tuning algorithms used in the o?cial camera modules.

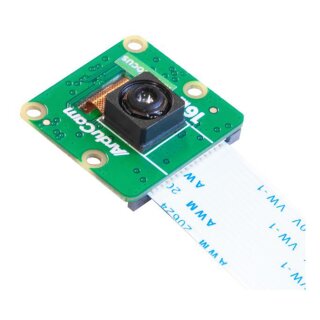

The package contains a camera board with a Sony IMX519 sensor and a stock lens, an FPC cable.
Feature
- ?16MP for All Pis?The new Raspberry Pi camera features a 16MP Sony IMX519 sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera; it is compatible with any Raspberry Pi board with a MIPI/CSI interface and runs directly on the Raspberry Pi OS without much configuration.
- ?Crisper Images/Videos?The 16-megapixel camera can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second, and also provides an effective 80-degree field of view.
- ?V1/V2 Size?The camera module has the same size as the pi camera V2, the package comes with plastic housing, also suitable for V1 and V2 boards.
SPEC
| Sensor | Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size7.103 mm diagonal (Type 1/2.534) |
| Output | RAW10/8, COMP8 |
| Lens | f/1.75; EFL: 4.28; FoV: 80° |
| IR cut Filter | Without IR-cut filter, sensitive to infrared light |
|
Video Modes |
1080p@30fps, 720p@60fps |
|
Linux integration |
V4L2 driver available |
|
Ribbon Cable Length |
150mm |
Documentation
| Shipping weight: | 0.05 Kg |
