Arducam B0391 Mini 16MP IMX519 NoIR Camera Module for Raspberry Pi Zero

Arducam B0391 Mini 16MP IMX519 NoIR Camera Module for Raspberry Pi Zero

Artnr.: AC2-203910
Hersteller: Arducam

Arducam Mini 16MP IMX519 NoIR Camera Module for Raspberry Pi Zero

38,90 €

inkl. 19% MwSt.

(32,69 € exkl. MwSt.)

zzgl.

im Zulauf

Beschreibung
Kundenrezensionen

In order to meet the increasing need for Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on mini camera module that is fully compatible with Raspberry Pi Zero.

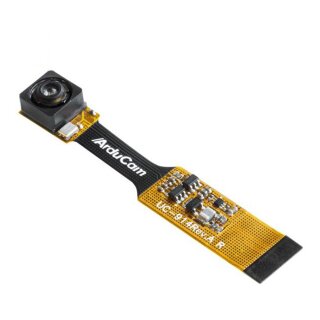

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance, or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor.

Application:

Cellular phones
PDAs
Toys
Other battery-powered products
Can be used in Raspberry Pi Zero

SPEC

Sensor	Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size7.103 mm diagonal (Type 1/2.534)
Output	RAW10/8, COMP8
Lens:	f/1.75; EFL: 4.28; FoV: 80°
IR Filter	Without IR-cut filter, sensitive to infrared light
Video Modes	1080p@30fps, 720p@60fps
Linux integration	V4L2 driver available
Ribbon Cable Length	60mm

Documentation

Manual

3D Drawing
