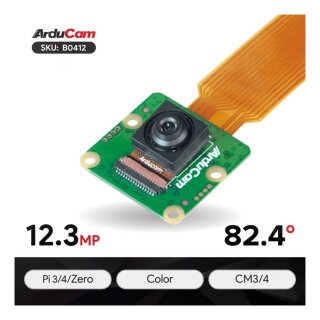

Arducam B0412 12MP IMX378 Camera Module for Raspberry Pi
Description
Description
PRODUCT DESCRIPTION
Based on Sony's IMX378 high-quality image sensor, Arducam IMX378 camera module is a ready-to-use embedded vision solution for the Raspberry Pi family. With a resolution of 12.3MP and a V2-like form factor, it is compatible with any existing Pi models and works with the latest software from the foundation. It can be widely used in machine vision systems and outdoor applications.
SPECIFICATION
| Sensor | IMX378 |
| Optical Size | Type 1/2.3" (Diagonal 7.857 mm) |
| Pixel Size | 1.55µm×1.55µm |
| Shutter Type | Rolling Shutter |
| Max Sensor Resolution | 4056 x 3040 |
| Color Filter Array | Bayer RGB |
| Resolution and Frame Rate | RAW10: 1332×990@120fps; RAW12: 2028×1080@50fps, 2028×1520@40fps, 4056×3040@10fps |
| Supported Platform | Pi 4/3/Zero/CM3/CM4 |
| Output | RAW10/RAW12 |
| Focus Type | Manual |
| Focus | 50cm~INF |
| Lens | f/1.8; EFL: 4.74mm ; FoV: 82.4° (D) |
| IR Sensitivity | Built-in 650nm IR-cut filter, visible light only |
| Dimensions | 25mm × 24mm |
DOCUMENTATIONS
PACKING LIST
- 1 x IMX378 Camera Module
- 1 x 150mm 15pin to 22pin flex cable
- 1 x 80mm 22pin flex cable
| Shipping weight: | 0.06 Kg |
