PRODUCT DESCRIPTION

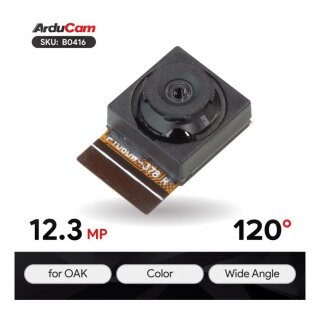

Sony's IMX378 is a 12MP (4056x3040) rolling shutter color image sensor. Arducam IMX378 camera module can be used in almost all of the OAK products (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) as the color camera.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
SPECIFICATION
|
Sensor |
IMX378 |
|
Optical Size |
Type 1/2.3" |
|
Pixel Size |
1.55µm×1.55µm (Diagonal 7.857 mm) |
|
Shutter Type |
Rolling Shutter |
|
Max Sensor Resolution |
4056 x 3040 |
|
Color Filter Array |
Bayer RGB |
|
Resolution and Frame Rate |
RAW10: 1332×990@120fps; RAW12: 2028×1080@50fps, 2028×1520@40fps, 4056×3040@10fps |
|
Supported Platform |
Pi 4/3/Zero/CM3/CM4 |
|
Output |
RAW10/RAW12 |
|
Focus Type |
Manual |
|
Focus |
50cm~INF |
|
Lens |
f/2.8; EFL: 2.75mm; FoV: 120° (D) |
|
IR Sensitivity |
Built-in 650nm IR-cut filter, visible light only |
|
Dimensions |
25mm × 24mm |
Documentations
Pack List
1 x IMX378 Camera Module with wide angle for DepthAI OAK
