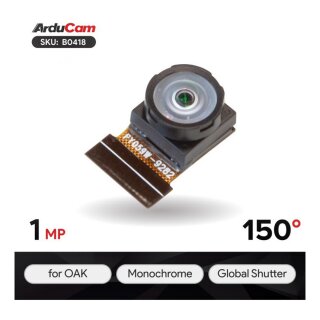

Arducam B0418 OV9282 Mono Global Shutter 1MP Wide Angle Camera Module for DepthAI OAK

Artno.: AC2-204180
Arducam OV9282 Mono Global Shutter 1MP Wide Angle Camera Module for DepthAI OAK
29.90 € incl. 19% VAT
25.13 € excl. VAT

plus shipping

Out of stock

Description

PRODUCT DESCRIPTION

OmniVision's OV9282 is a 1MP (1280×800) global shutter grayscale image sensor. Arducam OV9282 camera module can be used in almost all OAK products (OAK-D, OAK-D S2 OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) as the stereo camera pair. It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC 4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.

SPECIFICATION

Sensor OV9282
Optical Size Type 1/4"
Pixel Size 3µm×3µm
Shutter Type Global Shutter
Max Sensor Resolution 1280 x 800
Color Filter Array None (Monochrome)
Resolution and Frame Rate 1280×800@60fps, 1280×720@60fps, 640×400@120fps
Supported Platform Most OAK-D boards, OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P)
Focus Type Manual
Focus 50cm~INF
Lens f/2.0; EFL: 1.69mm; FoV: 150° (D)
IR Sensitivity Built-in 650nm IR filter, sensitive to visible light only
