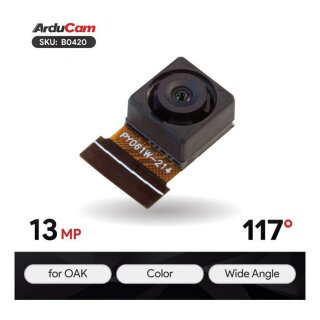

Arducam B0420 IMX214 13MP Wide Angle Camera Module for DepthAI OAK
Beschreibung
PRODUCT DESCRIPTION
This Arducam IMX214 13MP high-resolution camera module is designed and released as the color camera in OAK Lite variants; OAK-D-Lite and OAK-1 Lite.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
SPECIFICATION
| Sensor | IMX214 |
| Optical Size | Type 1/3.06" |
| Pixel Size | 1.12µm×1.12µm |
| Shutter Type | Rolling Shutter |
| Color Filter Array | RGB Color |
| Max Sensor Resolution | 4208 x 3120 |
| Resolution & Frame Rate | 4208×3120@30fps, 4056×3040@30fps, 3840×2160@30fps, 1920×1080@35fps |
| Supported Platform | OAK-D-Lite, OAK-1 Lite, OAK-FFC-3P, OAK-FFC-4P |
| Focus Type | Manual |
| Focus | 50cm~INF |
| Lens | f/2.2, EFL: 2.262mm, FoV: 117° (D) |
| IR Sensitivity | Build-in 650nm IR filter, sensitive to visible light only |
| Module Dimensions | 8.5mm x 14.67mm |
DOCUMENTATIONS
PACKING LIST
- 1 x IMX214 Camera Module for DepthAI OAK
