Description
This camera is the Arducam NEW UVC camera.The max resolution&frame rate is 1920(H)x1080(V)@30fps. The camera is based on high-quality 2MP AR0230 WDR image sensor. Support MJPG/YUV2/H.264 output format. Besides, we have equipped an excellent Mental Case for this camera module. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 95°(H) M12 lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC and no additional drivers are required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
Features
- HDR and WDR: Based on 2MP AR0230 Color COMS image sensor with a 96dB wide dynamic range. Max resolution: 1920x1080. Support MJPG/YUY2/H.264 output format.
- HD M12 Lens: Armed with a wide angle High-quality 95-degree view angle (Horizontal) M12 Lens with 650nm IR-cut filter.
- Manual Focus: A manual focus camera allows you to use it in situations such as macro photographs, low light, etc. where other focus type is difficult to achieve.
- Plug & Play: UVC-compliant, support Windows XP/7/8/10, Linux, Mac OS, and Andriod devices with UVC, connect the camera to PC, laptop, or Raspberry Pi with the USB cable without extra drivers to be installed.

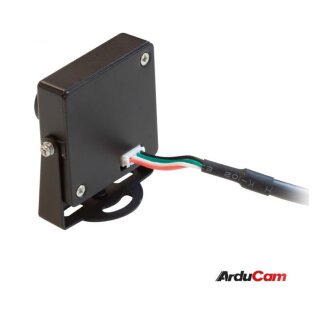

- Mental Case & Perfect Size: Equipped with an Elegant Mental Case, this 38×38mm camera board can be installed in the most hidden and narrow position for a home video surveillance system, day-night low light vision camera system, dashcam, or other machine vision application.
Specifications
| Sensor | AR0230 |
|---|---|
| Resolution | 2MP |
| Color Filter Type | Color |
| Shutter Type | Rolling shutter |
| Optical Size | 1/2.7" |
| Output Format | MJPG/YUY2/H.264 |
| Pixel Size | 3.0 µm x 3.0 µm |
| Sensor Active Area | 1920(H)x1080(V) |
| Frame Rate | MJPG 30fps@1920 x 1080/1280 x 720/640 x 480/320 x 240; YUY2 5fps@1920 x 1080/1280 x 720; 25fps@640 x 480/640 x 360/320 x 240; H.264 30fps@1920 x 1080/1280 x 720/640 x 480/640 x 360/320 x 240; |
| Focus Type | Manual Focus |
| FOV | 95°(H) |
| Lens Mount | M12*P0.5 |
| F.NO | 2.8±5% |
| E.F.L | 2.8mm |
| Interface | USB 2.0 device |
| Connector | S4B-ZR |
| UVC Complaint | no additional drivers required |
| Operating Voltage | DC 5V +/- 5% |
| Working Current | Max 300mA |
| Operating Temp. | -4??158??-20°C to 70°C) |
| Camera Board Size | 38mm x 38mm x 21mm(Hole Pitch: 34mmx34mm, 28mmx28mm) |
| Audio | / |
| Supported OS | Windows, Linux, Android and MAC |
| Sample Application | Amcap-Windows Camera application for Video and Still Capture |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance (Auto), Backlight Contrast, Gain, Exposure (Auto) |
Package Including
- 1 x Arducam 2MP USB Camera Module with M12 Lens
- 1 x USB Cable (1M)
- 1 x Quick Start Guide
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
