Arducam B0441 5MP Autofocus USB Camera Module with Single Microphone for Windows, Linux, MacOS, Android
Description
This camera is Arducam NEW Autofocus UVC camera. The max resolution&frame rate is 2592(H)×1944(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 69°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC. There are no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
Features
- Autofocus: 5MP(2592*1944)@30fps, full HD USB camera with Autofocus Lens; Capture most exciting details at every 30/15fps, FoV: 69°(H)
- MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system and applications for industrial.
- Plug and Play: OTG supported plug the USB cable into your PC's USB port, and running the software can capture high-level video and continuous recording, no driver is needed.
- Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android, etc.
- Mini Sized: Lightweight and compact size is perfect for embedded applications and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
Specifications
| Resolution | 5MP |
| Color Filter Type | Color |
| Shutter Type | Rolling shutter |
| Optical Size | 1/4" |
| Output Format | YUYV/MJPG |
| Pixel Size | 1.4µm*1.4µm |
| Sensor Active Area | 2592(H)×1944(V) |
| Frame Rate | MJPG: 30fps@2592*1944/2560*1440/2048*1536/ 1920*1080/1280*720/1600*1200/1280* 960/ 800*600/640*480/352*288/176*144 YUY2: 176*144/352*288/640*480@30fps; 800*600/1280*720/1280*960/1600*1200/ 1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps |
| Focus Type | Auto Focus |
| FOV | 69°(H) |
| Lens Mount | M6.5*P0.25mm |
| F.NO | 2.0±5% |
| E.F.L | 2.46mm |
| Focal Length | / |
| TV Distortion | ??% |
| Interface | USB 2.0 device |
| Connector | SM05B-SRSS-TB |
| UVC Complaint | no additional drivers required |
| Operating Voltage | DC 5V +/- 5% |
| Working Current | Max 300mA |
| Operating Temp. | -4??158??-20°C to 70°C) |
| Camera Board Size | 62mm x 9mm x 6mm |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android and MAC |
| Sample Application | Amcap-Windows Camera application for Video and Still Capture |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus |
Package Including

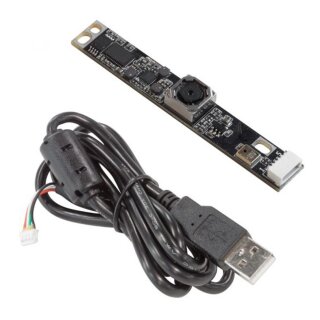

- 1 x Arducam 5MP AF Camera Module
- 1 x USB Cable (1m)
- 1 x Paper Quick start guide
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
Documentation
| Shipping weight: | 0.05 Kg |
