To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The MT9N001 camera module features DigitalClarity?Micron's breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
1/2.3" 9MP (3488 x 2616) CMOS color rolling shutter with global reset release camera module MT9N001 .
World-Class 1.75µm Pixel Sensitivity, Produced on Aptina's world-class 1.75µm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.
Feature:
- 1/2.3" optical format
- RGB Bayer pattern
- 9MP 3488 x 2616 MT9N001 sensor
- 1.75 x 1.75 um Pixel size
- 9.7fps at full resolution
- 0.44V/lux-sec responsivity
- 62.7dB dynamic range
- single 3.3V power input
- Parallel camera interface
- M12 mount lens
Application:
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Packing List:

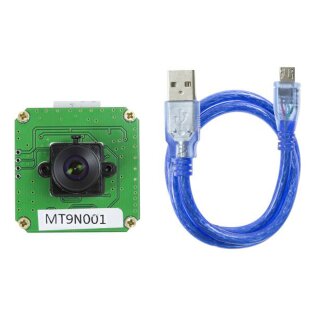

- 1pcs Arducam CMOS MT9N001 1/2.3-Inch 9MP Color Camera Module
- 1 pcs Arducam USB2 Camera Shield
- 1 pcs USB2 Cable
