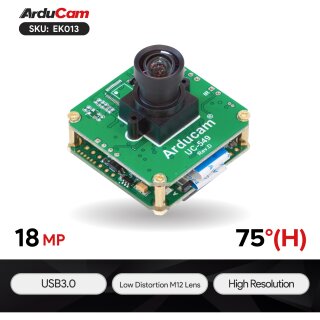

Arducam EK013 18MP USB Camera Evaluation Kit - CMOS AR1820HS 1/2.3-inch Color Camera with USB3.0 Camera Shield Plus
Artno.: AC2-400130
Arducam 18MP USB Camera Evaluation Kit - CMOS AR1820HS 1/2.3-inch Color Camera with USB3.0 Camera Shield Plus

379.00 € incl. 19% VAT
318.49 € excl. VAT
Orderable

Shipping time: 61 - 63 business days

Description

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3-inch CMOS active-pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS? BSI Pixel . It can support 18-megapixel (4912H x 3684V) digital still images at 24 fps and a 1080p plus additional 27 percent pixels for electronic image stabilization (2448H x 1378V) in digital video mode at 60 fps and 1080p120 fps.

Features:

  • Optical format: 1/2.3-inch
  • Active pixels: 4912H x 3684V
  • Pixel size: 1.25um x 1.25um
  • Color filter array: RGB Bayer pattern
  • ADC resolution: 12-bit, on-chip
  • Responsivity: 0.62 V/lux-sec (545 nm)
  • Dynamic range: 65.8 dB
  • SNRMAX: 36.3 dB
  • Output Interface: 2-Lane MIPI
  • Frame Rate: 120 fps
  • Lens Default: low distortion M12 lens (Part Number: M23390H08)
  • IR Sensitive: build-in 650nm IR filter, none sensitive to IR light

Application:

  • Digital video cameras
  • Digital still cameras
  • Industrial camera
  • Medical camera
  • Microscopy camera
  • UAV camera

Package Including:

  • 1 pcs Arducam CMOS AR1820HS 1/2.3-inch 18MP Color Camera Module
  • 1 pcs Arducam USB3.0 camera shield plus
  • 1 pcs USB3 Cable
