Arducam EK015 1.3MP USB Camera Evaluation Kit - HD CMOS MT9M001 1/2-Inch Monochrome Camera Module with Parallel Camera Adapter Board and USB2 Camera Shield (Rev.E)
Artnr.: AC2-400150
Arducam 1.3MP USB Camera Evaluation Kit - HD CMOS MT9M001 1/2-Inch Monochrome Camera Module with Parallel Camera Adapter Board and USB2 Camera Shield (Rev.E)

149,00 € inkl. 19% MwSt.
125,21 € exkl. MwSt.
bestellbar

Lieferzeit: 61 - 63 Arbeitstage

Beschreibung

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.

Features:

  • Monochrome image sensor: MT9M001
  • Maxim resolution: 1280 x 1024 SXGA at 15 fps
  • Shutter type: Electronic rolling shutter (ERS)
  • Optical size: 1/2"
  • ADC resolution: 10-bit
  • Supports image sizes: SXGA, VGA, QVGA, CIF, QCIF, etc
  • Extreme High sensitivity for low-light operation
  • Low operating voltage for embedded portable apps
  • Standard I2C two wire interface
  • Digital Video Port interface
  • Easy intergrate with STM32,FPGA,DSP,Arduino etc.

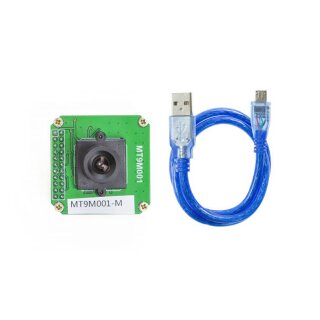

Package Including:

  • 1pcs MT9M001 Monochrome camera module with M12 mount
  • 1 pcs Arducam USB2 Camera Shield (Rev.E)
  • 1 pcs Parallel Camera Adapter Board for USB Camera Shield
  • 1 pcs USB2 Cable

Additional Resources:
