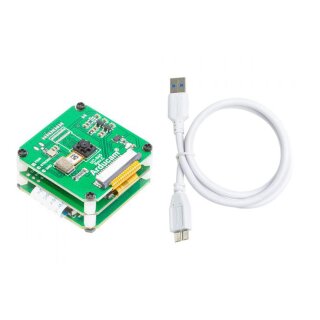

Arducam EK022 OV7251 0.3MP Global Shutter USB Camera Evaluation Kit - 1/7.5-inch Monochrome Camera Module with USB3.0 Camera Shield Plus

Artnr.: AC2-400220
Hersteller: Arducam

Arducam OV7251 0.3MP Global Shutter USB Camera Evaluation Kit - 1/7.5-inch Monochrome Camera Module with USB3.0 Camera Shield Plus

249,00 €

inkl. 19% MwSt.

(209,24 € exkl. MwSt.)

ausverkauft

Beschreibung
Kundenrezensionen

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The Arducam monochrome (B&W) global shutter VGA resolution OV7251 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi's CSI-2 camera interface without additional hardware. This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Features:

Sensor: Monochrome global shutter OV7251
Pixel Size: 3 µm x 3 µm
Active array size: 640*480
Optical Size: 1/7.5 inch
EFL: 1.3mm
F.NO: 2.2
IR Sensitivity: build-in 650nm IR cut filter (Check IR sensitive version with SKU EK028)
FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
Focusing Range: 65mm ~ infinite
Output interface: 1-lane MIPI serial output
Output formats: 8/10-bit BW RAW
Maximum image transfer rate: 640 x 480: 210 fps
Board Size: 40mm x 40mm

Application:

Cellular phones
Toys
Tablets
Machine vision
ARM/FPGA/DSP based platforms

Package Including:

1 pcs Arducam OV7251 1/7.5-inch Monochrome Camera Module
1 pcs Arducam USB3.0 Camera Shield plus
1 pcs USB3 Cable

Additional Resources:

Es gibt noch keine Bewertungen.
