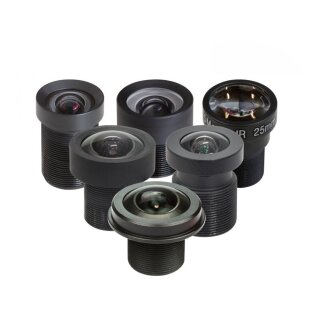

Arducam LK003 M12 Lens Kit for Raspberry Pi High Quality IMX477 Camera
Artno.: AC3-300030
Arducam M12 Lens Kit for Raspberry Pi High Quality IMX477 Camera, Fisheye Wide Angle Telephoto M12 Camera Lenses with Lens Adapter

119.00 € incl. 19% VAT
100.00 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to fisheye for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

NOTE: The including CS lens mount and C-CS adapter ring can be used for microscopy with reversed mounted lens on Raspberry Pi V1 and V2 camera. For more details, you can refer to this link.

Lens Specification:

SKU LN036 LN024 LN053 LN033 LN056 LN031
Part No: M2025ZM02 M2306ZM13 M23390H08 M23356H09 M23272M14 M25156H18
Optical Format 1/2.3' 1/2.3" 1/2.3" 1/2.3" 1/2.3" 1/2.3'
EFL(mm) 25.00 6.00 3.90 3.56 2.27 1.56
BFL(mm) 5.20 7.56 4.49 5.92 3.01 4.30
Construction 6G 6G+IR 6G+IR 4G3P+IR 8G+IR 6G+IR
F/NO 2.0 2.0 2.8 2.5 2.5 2.0
HFOV on 1/2.3?' Cam 20° 50° 75° 90° 140° 180°
IR filter No IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter
MOD 0.20m 0.30m 0.30m 0.20m 0.20m 0.20m
Size(mm) 17 x 21 16x 16.41 14x 18.67 14x 16.3 17.2x 22 20x 17.3

Package Includes:

  • 1pcs 1/2.3" M12 180 degree fisheye camera Lens
  • 1pcs 1/2.3" M12 140 degree wide angle camera Lens
  • 1pcs 1/2.3" M12 90 degree wide angle camera Lens
  • 1pcs 1/2.3" M12 75 degree camera Lens
  • 1pcs 1/2.3" M12 50 degree camera Lens
  • 1pcs 1/2.3" M12 telephoto 20 degree camera lens
  • 1pcs M12 lens adapter
  • 2pcs M12 lens holders
  • 1pcs M12 locking ring
  • 1 pack lens screws

Documentation

Datasheet.pdf

3D Drawing

You May Also Like

Arducam M12 Mount Lens Kit can also be used with Arducam 12MP IMX477 high quality camera modules, which are compatible with the Raspberry Pi, Jetson Nano and More.

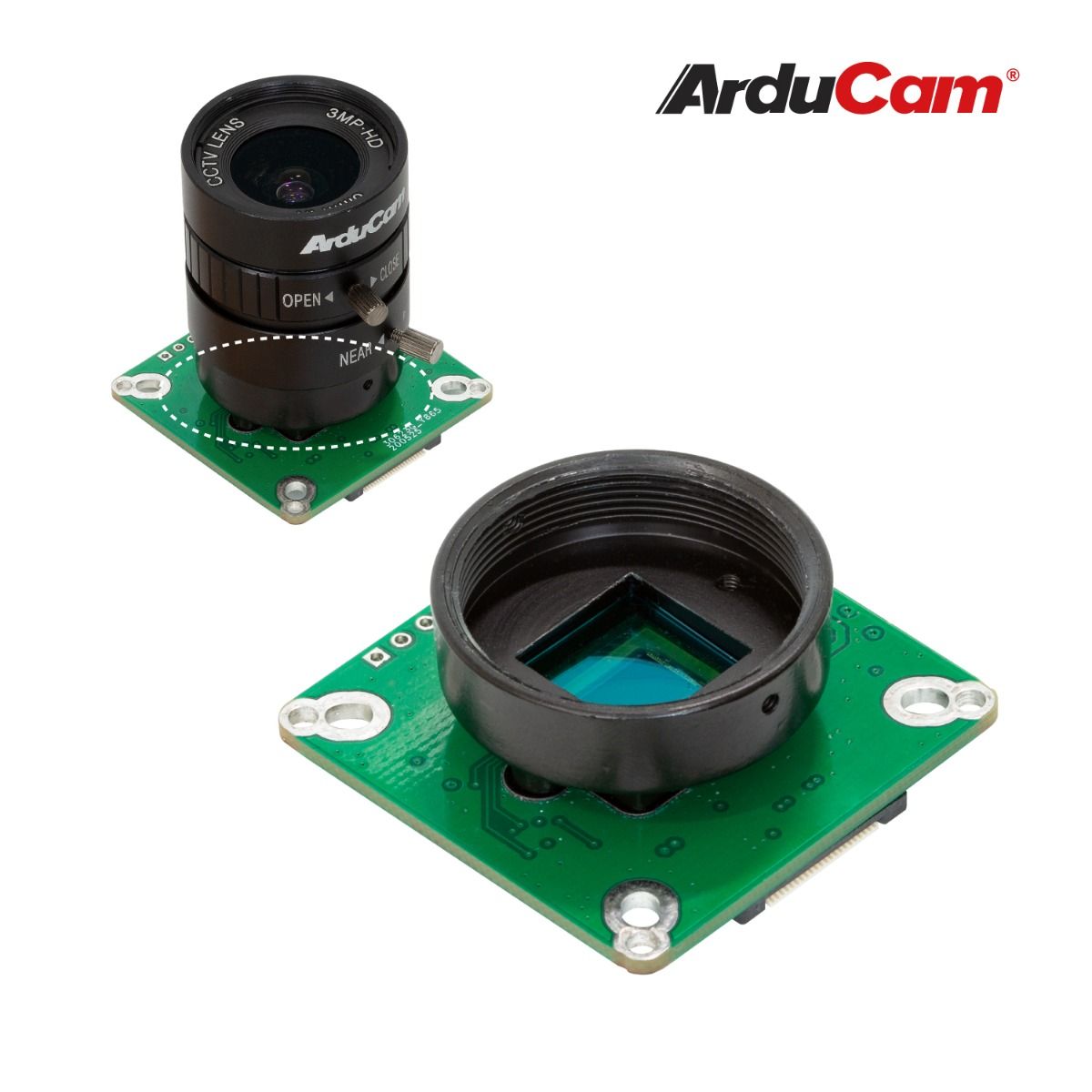

Arducam High Quality Camera for Raspberry Pi, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS Lens for Pi 4B, 3B+, 2B, 3A+, Pi Zero and more

Arducam High Quality Camera for Raspberry Pi>>

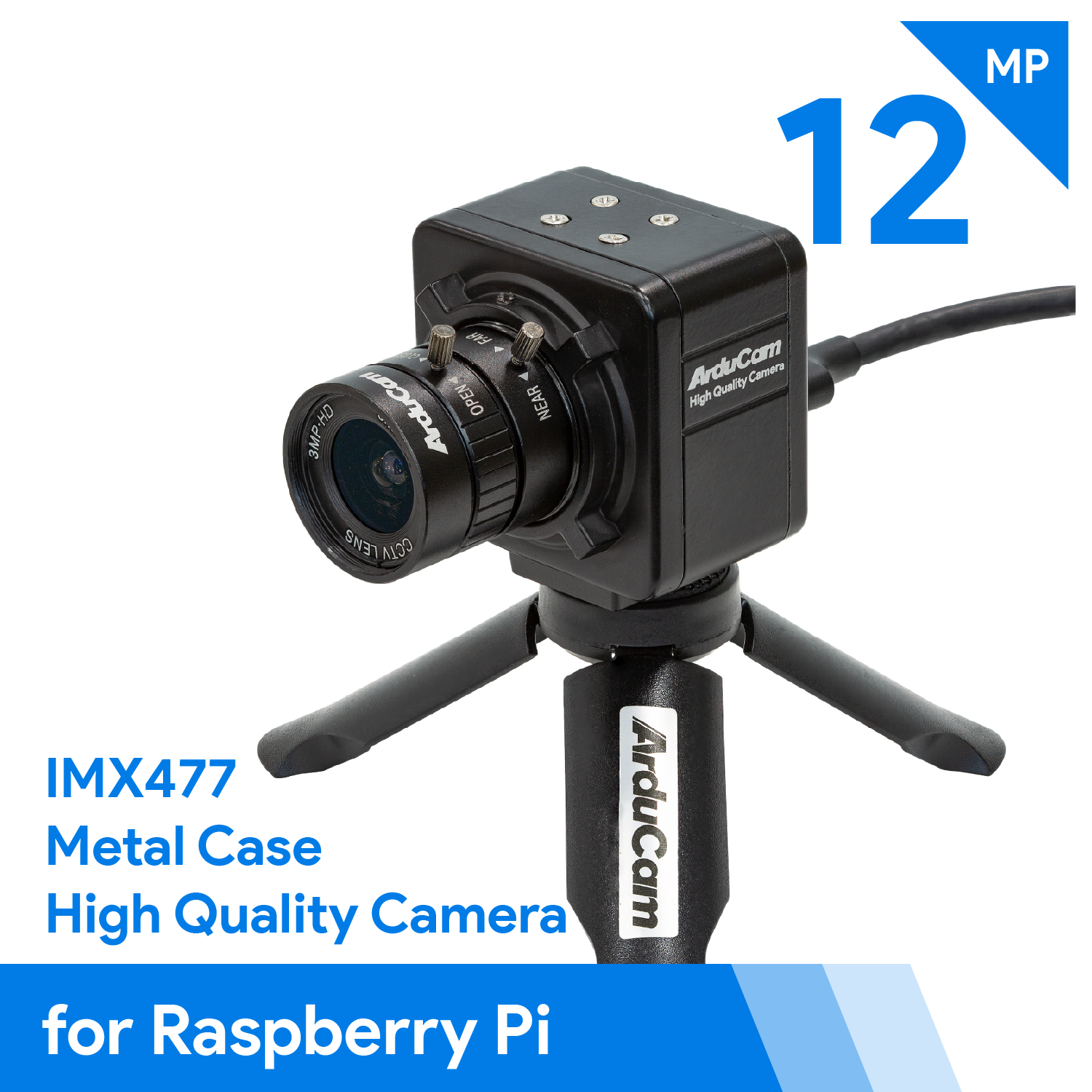

Arducam Complete High Quality Camera Bundle for Raspberry Pi, 12.3MP 1/2.3 Inch IMX477 Camera Module with 6mm CS-Mount Lens, Metal Enclosure, Tripod and HDMI Extension Adapter

Arducam Complete High Quality Camera Bundle for Raspberry Pi>>

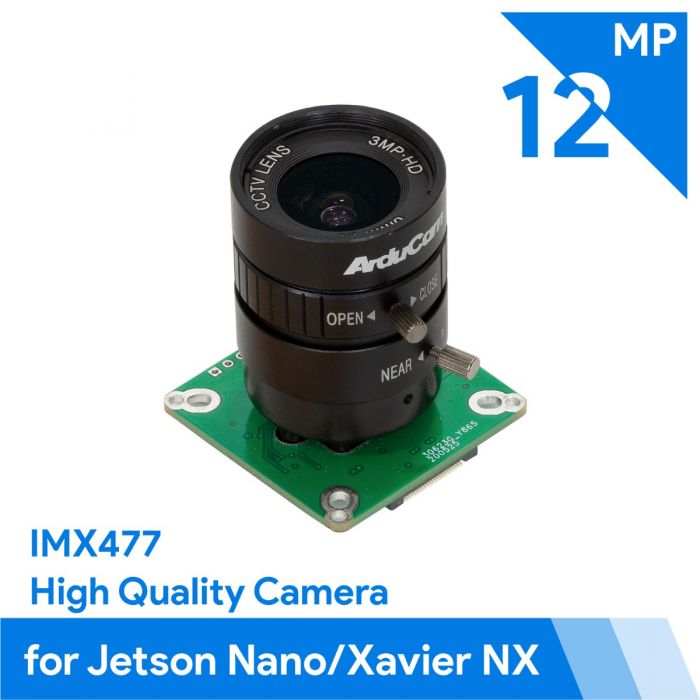

Arducam High Quality Camera, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS-Mount Lens for Jetson Nano,Xavier NX and Raspberry Pi Compute Module CM4, CM3, CM3+

Arducam High Quality Camera for Jetson Nano>>

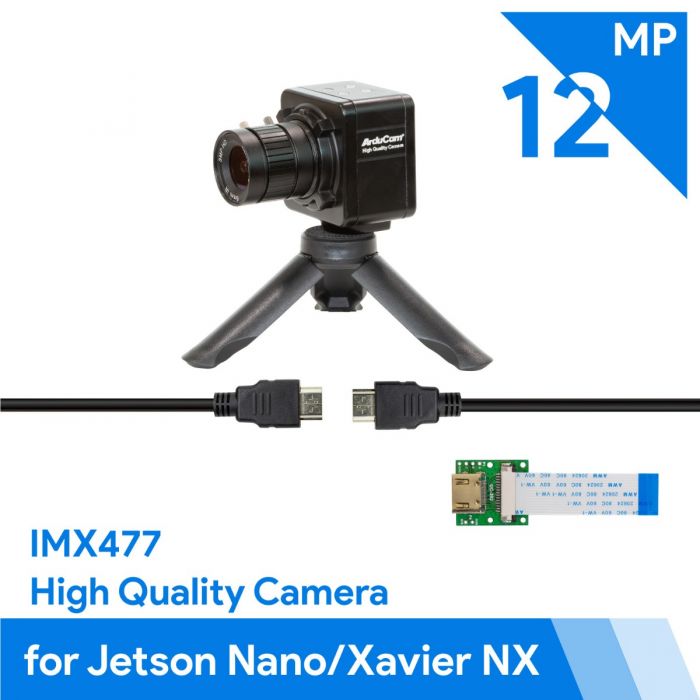

Arducam Complete High Quality Camera Bundle, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS-Mount Lens, Metal Enclosure, Tripod and HDMI Extension Adapter for Jetson Nano,Xavier NX and Raspberry Pi Compute Module CM4, CM3, CM3+


Shipping weight: 0.17 Kg
