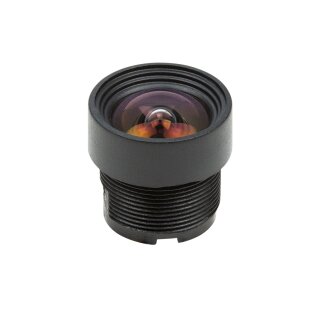

Arducam LN014 1/4" M12 Mount 2.1mm Focal Length Low Distortion Camera Lens M40210M09S

Features:

• Arducam Lens M40210M09S featuring low distortion
• Module number:M40210M09S
• Optical Format: 1/4"
• Distortion :<1%
• Effective Focal Length:2.1mm
• 35mm equivalent focal length: 22.71mm
• FOV on 1/4"sensor(D/H/V):105°/80°/65°
• FOV on 1/4"RPi Camera: 80°
• F/NO: 2.2
• Mount: M12
• Length Holder Height: 7mm
• Size: 14mm x13mm
• Weight:3g
• IR Sensitivity: sensitive to visible light, with 650nm IR filter

Package Includes:

• 1pcs Arducam 1/4" M12 Mount 2.1mm Focal Length Low Distortion Camera Lens M40210M09S

Note:

• Lens holder NOT included, you could find holder options following.
• Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.

Lens Holder Options:

• M12 Lens Holder Kit (SKU: LHK01)
• Height: 10.0mm; Hole Spacing: 20mm; Metal (SKU: U0756M10)
• Height: 8.5mm; Hole Spacing: 18mm; Plastic (SKU: LH002)
• Height: 7.0mm; Hole Spacing: 20mm; Metal (SKU: U0756)
• Height: 6mm; Hole Spacing: 18mm; Plastic (SKU: LH001)

More M12 Lens Option:

• M12 Lens Kits (SKU: LK001).
• Low Distortion M12 Lens Kits (SKU: LK002).

Additional Resources:

• Low Distortion Lens Kit Datasheet – Arducam M12 Lens Kit
• Arducam Documentation – Arducam M12 Lens Kit
• Video – Arducam M12 Lens Kit
• Blog – Arducam M12 Lens Kit
• 3D Drawing
