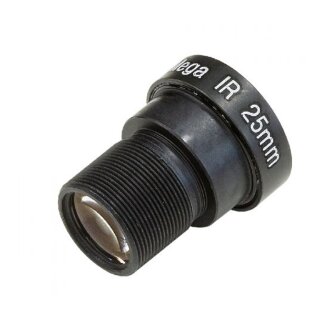

Arducam LN016 M12 Mount 25mm Focal Length Lens M2025ZH01

Features:

• Optical Format:1/2", Effective Focal Length:25mm
• 35mm equivalent focal length: 250mm
• HFOV on 1/2.3" HQ Camera: 20°
• HFOV on 1/4" RPi Camera: 8°, F/NO: 2.0
• Mount:M12, Length Holder Height: 13mm
• Size: 17mm x 21mm, Weight: 8g
• IR Sensitivity: sensitive to IR light, without IR filter

Package Includes:

• 1pcs Arducam M12 Mount 25mm Focal Length Lens M2025ZH01

Note:

• Lens holder NOT included, you could find holder options following.
• Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.

Lens Holder Options:

• M12 Lens Holder Kit (SKU: LHK01)
• Height: 16.5mm; Hole Spacing: 20mm; Metal (SKU: U0756M16)
• Height: 14.5mm; Hole Spacing: 20mm; Metal (SKU: U0756M14)
• Height: 13.0mm; Hole Spacing: 20mm; Metal (SKU: U0756M13)
• Height: 12.0mm; Hole Spacing: 18mm; Plastic (SKU: LH003)
• Height: 10.0mm; Hole Spacing: 20mm; Metal (SKU: U0756M10)
• Height: 8.5mm; Hole Spacing: 18mm; Plastic (SKU: LH002)
• Height: 7.0mm; Hole Spacing: 20mm; Metal (SKU: U0756)

More M12 Lens Options:

• M12 Lens Kit (SKU: LK001)
• Low Distortion M12 Lens Kit (SKU: LK002)

Additional Resources:

• M12 Lens Kit Datasheet – Arducam M12 Lens Kit
• Arducam Documentation – Arducam M12 Lens Kit
• Video – Arducam M12 Lens Kit
• Blog – Arducam M12 Lens Kit
