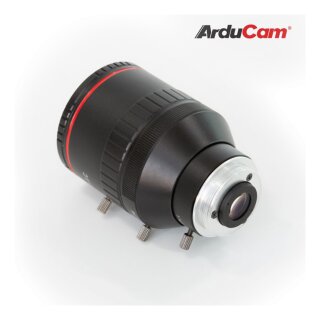

Arducam LN049 2.8-12mm Varifocal C-Mount Lens for Raspberry Pi HQ Camera

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future. It is a better option to adapt the CS-Mount of the Raspberry Pi High Quality Camera to the access compact varifocal lens with a C-CS adapter is included.

Lens Specification:

• Model No: C20280M12
• Optical Format: 1/2"
• Focal Length: 2.8-12mm
• Aperture: F1:1.6
• Field of View (FOV): 125°(H)-43°(H), 120°(H)-38°(H) on 1/2.3" IMX477 High Quality Camera
• Focus Type: manual
• Mount: C mount
• Back Focal Length: 17.53mm
• MOD: 0.3m
• Dimension: F44.5×58.5mm
• Weight: 140g

Package Includes:

• 1pcs 1/2" C-Mount 2.8-12mm varifocal lens for Raspberry Pi

Documentation:

• 3D Drawing- 1/2" C-Mount 2.8-12mm varifocal lens for Raspberry Pi
