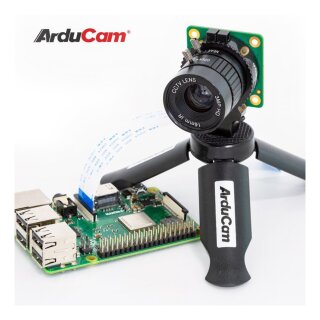

Arducam LN050 CS-Mount Lens for Raspberry Pi HQ Camera

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future. We've tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works. It is another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module.
For more CS mount lenses for HQ Camera, you could check 5-in-1 CS Mount Lens Kit here.

Lens Specification:

• Model No: CS2316ZM02
• Optical Format: 1/2.3"
• Focal Length: 16mm
• Aperture: Max F1.2
• Field of View (FOV): 24°(H) on Raspberry Pi High Quality Camera, 13°(H) on Raspberry Pi V1/V2 Camera
• Focus Type: manual
• Mount: CS mount
• Back Focal Length: 7.53mm
• MOD: 0.2m
• Dimension: Φ30×29mm
• Weight: 45g

Package Includes:

• 1pcs 1/2.3" CS-Mount 16mm focal length lens for Raspberry Pi

You May Also Like

This lens can also be used with Arducam 12MP IMX477 high quality camera modules, which are compatible with the Raspberry Pi, Jetson Nano and More.
