Arducam LN075 1/1.8'' 4K 25mm Low Distortion M12 Lens for OS08A10,OS08A20 and more image sensors with large optical format
Artno.: AC3-700750
Arducam 1/1.8'' 4K 25mm Low Distortion M12 Lens for OS08A10,OS08A20 and more image sensors with large optical format

71.90 € incl. 19% VAT
60.42 € excl. VAT
Orderable

Shipping time: 61 - 63 business days

Description

Overview

In order to meet the new demands of the lens to work with more image sensors with the large optical format and high resolution, Arducam selected and tested a wide range of 4K M12-mount lenses from long focus to wide angle for shooting on your high quality cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

This 25mm F/2.8 low distortion M12 lens provides a 14° Horizontal Field of View on 1/2.3" sensors.

Lens Specification

Model No: M1825ZH02S
Resolution: 8MP+
Optical Format: ~9mm Image circle(Up to 1/1.8")
TV Distortion : <-0.05%
Effective Focal Length: 25mm
Back Focal Length: 11.36mm
HFOV on 1/1.8" Camera: 15°
HFOV on 1/2.3" Camera: 14°
IR Sensitivity: With 650nm IR filter, sensitive to visible light
Construction: 4G5E+IR
Aperture: F2.8
MOD: 0.1m
Mount: M12 x P0.5
Length Holder Height: 12~14.5mm
Dimension: ?14 x 20.25mm
Weight: 6.5g
See Datasheet for more values

Package Contents

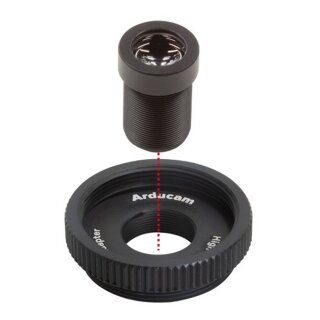

  • 1pcs Arducam 1/1.8" 4K M12 Mount 25mm Focal Length Low Distortion Camera Lens M1825ZH02S
  • 1pcs M12 lens adapter
